AIML-1206-1R2K-T

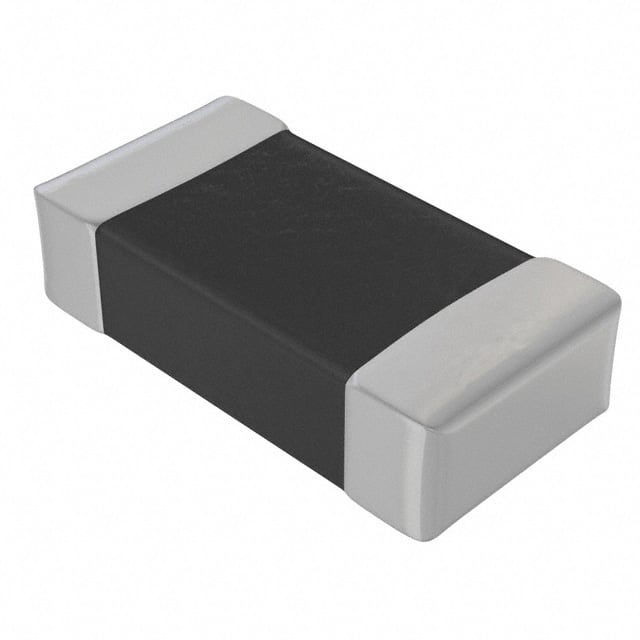

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

AIML-1206-1R2K-T

Manufacturer
Abracon LLC
Manufacturer Product Number
AIML-1206-1R2K-T
Description
FIXED IND 1.2UH 100MA 400MOHM SM
Product Status
Active
Detailed Description
1.2 µH Shielded Multilayer Inductor 100 mA 400mOhm Max 1206 (3216 Metric)
Datasheet
AIML-1206-1R2K-T Datasheet
EDA/CAD Models
AIML-1206-1R2K-T Models

Product Attributes

Current - Saturation (Isat) -
Current Rating (Amps) 100 mA
DC Resistance (DCR) 400mOhm Max
Frequency - Self Resonant 80MHz
Height - Seated (Max) 0.055" (1.40mm)
Inductance 1.2 µH
Inductance Frequency - Test 10 MHz
Material - Core Ferrite
Mfr Abracon LLC
Mounting Type Surface Mount
Operating Temperature -55°C ~ 125°C
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Package / Case 1206 (3216 Metric)
Product Status Active
Q @ Freq 50 @ 10MHz
Ratings -
Series AIML-1206
Shielding Shielded
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Supplier Device Package 1206
Tolerance ±10%
Type Multilayer
Description Shipping Reviews (2)

1.2 µH Shielded Multilayer Inductor 100 mA 400mOhm Max 1206 (3216 Metric)
