1/4C24-N20-H

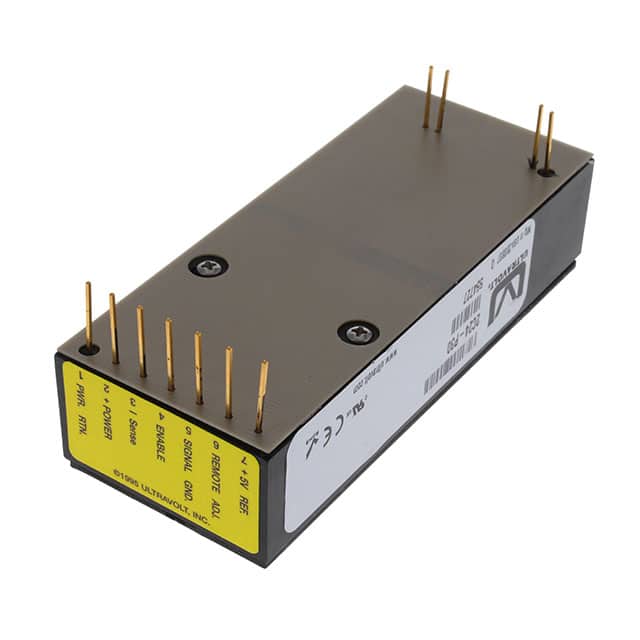

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

1/4C24-N20-H

Manufacturer
Advanced Energy
Manufacturer Product Number
1/4C24-N20-H
Description
DC DC CONVERTER 250V 15W
Product Status
Active
Detailed Description
High Voltage - Non-Isolated Module DC DC Converter 1 Output 250V 80mA 23V - 30V Input
Datasheet
1/4C24-N20-H Datasheet
EDA/CAD Models
1/4C24-N20-H Models

Product Attributes

Applications ITE (Commercial)
Approval Agency CE, cURus
Base Product Number 1/4C24
Control Features Enable, Active Low
Current - Output (Max) 80mA
Efficiency -
Features Heat Sink
Mfr Advanced Energy
Mounting Type Through Hole
Number of Outputs 1
Operating Temperature -40°C ~ 65°C
Package Bulk
Package / Case 11-DIP Module
Power (Watts) 15 W
Product Status Active
Series UltraVolt® C
Size / Dimension 3.70" L x 1.50" W x 1.23" H (94.0mm x 38.1mm x 31.3mm)
Supplier Device Package -
Type High Voltage - Non-Isolated Module
Voltage - Input (Max) 30V
Voltage - Input (Min) 23V
Voltage - Output 1 250V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Description Shipping Reviews (2)

High Voltage - Non-Isolated Module DC DC Converter 1 Output 250V 80mA 23V - 30V Input
