HW0430520000G

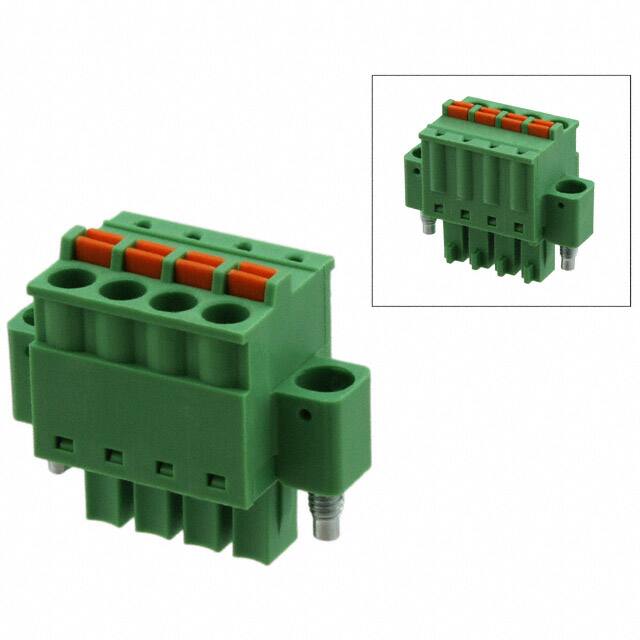

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

HW0430520000G

Manufacturer
Amphenol Anytek
Manufacturer Product Number
HW0430520000G
Description
TERM BLOCK PLUG 4POS STR 3.81MM
Product Status
Active
Detailed Description
4 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
Datasheet
HW0430520000G Datasheet
EDA/CAD Models
HW0430520000G Models

Product Attributes

Mfr Amphenol Anytek
Series 35-381
Package Bulk
Product Status Active
Type Plug, Female Sockets
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation -
Plug Wire Entry 180°
Termination Style Screwless - Leg Spring, Push-In Spring
Mounting Type Free Hanging (In-Line)
Current - IEC -
Current - UL 8 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 16-28 AWG
Wire Gauge or Range - mm² 1.5mm²
Color Green
Operating Temperature -40°C ~ 115°C
Contact Mating Finish Tin
Features Mating Flange
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length 8-9mm
Contact Material Copper Alloy
Housing Material Thermoplastic Resin
Contact Tail Length -
Insulation Height 0.488" (12.40mm)
Base Product Number HW04
Description Shipping Reviews (2)

4 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
