10106813-041112LF

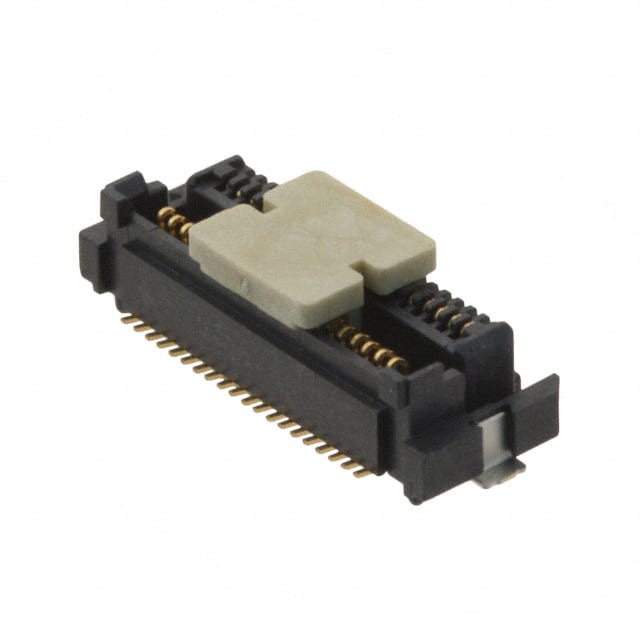

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

10106813-041112LF

Manufacturer
Amphenol ICC (FCI)
Manufacturer Product Number
10106813-041112LF
Description
CONN SELF-MATE 40POS SMD GOLD
Product Status
Active
Detailed Description
40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold or Gold, GXT™
Datasheet
10106813-041112LF Datasheet
EDA/CAD Models
10106813-041112LF Models

Product Attributes

Base Product Number 10106813
Connector Type Self Mating, Non-Gendered, Hermaphroditic
Contact Finish Gold or Gold, GXT™
Contact Finish Thickness 15.0µin (0.38µm)
Features Board Guide, Solder Retention
Height Above Board 0.140" (3.55mm)
Mated Stacking Heights 4mm, 4.5mm, 5.5mm
Mfr Amphenol ICC (FCI)
Mounting Type Surface Mount
Number of Positions 40
Number of Rows 2
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Pitch 0.020" (0.50mm)
Product Status Active
Series MezzoStak
Description Shipping Reviews (2)

40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold or Gold, GXT™
