CZ3A04

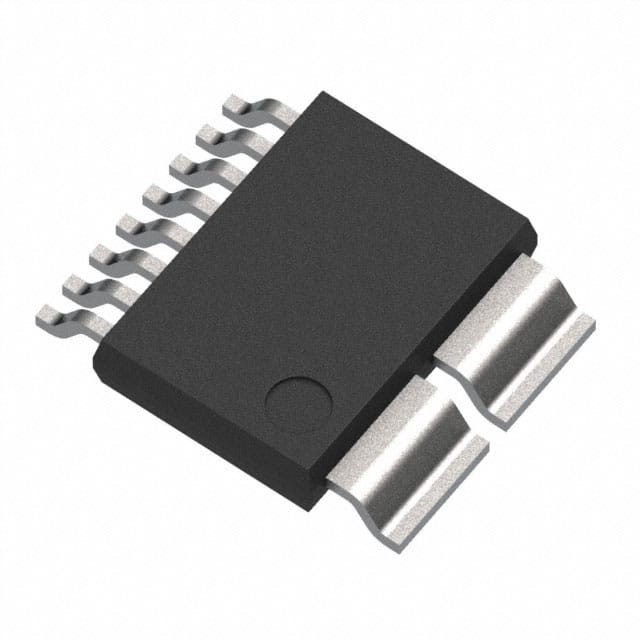

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

CZ3A04

Manufacturer
Asahi Kasei Microdevices/AKM
Manufacturer Product Number
CZ3A04
Description
3.3V OUTPUT ACCURATE CORELESS CU
Product Status
Active
Detailed Description
Current Sensor 32.2A 1 Channel Hall Effect, Open Loop Bidirectional 16-PowerSOIC (0.303", 7.70mm Width), 10 Leads
Datasheet
CZ3A04 Datasheet
EDA/CAD Models
CZ3A04 Models

Product Attributes

Accuracy ±2.1%
Base Product Number CZ3A
Current - Sensing 32.2A
Current - Supply (Max) 16mA (Typ)
For Measuring AC/DC
Frequency -
Linearity ±0.6%
Mfr Asahi Kasei Microdevices/AKM
Mounting Type Surface Mount
Number of Channels 1
Operating Temperature -40°C ~ 85°C (TA)
Output Voltage
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Package / Case 16-PowerSOIC (0.303", 7.70mm Width), 10 Leads
Polarization Bidirectional
Product Status Active
Response Time 1µs
Sensitivity 48mV/A
Sensor Type Hall Effect, Open Loop
Series CZ
Supplier Device Package 10-SMD
Voltage - Supply 3V ~ 3.6V
Description Shipping Reviews (2)

Current Sensor 32.2A 1 Channel Hall Effect, Open Loop Bidirectional 16-PowerSOIC (0.303", 7.70mm Width), 10 Leads
