0ZCG0150AF2C

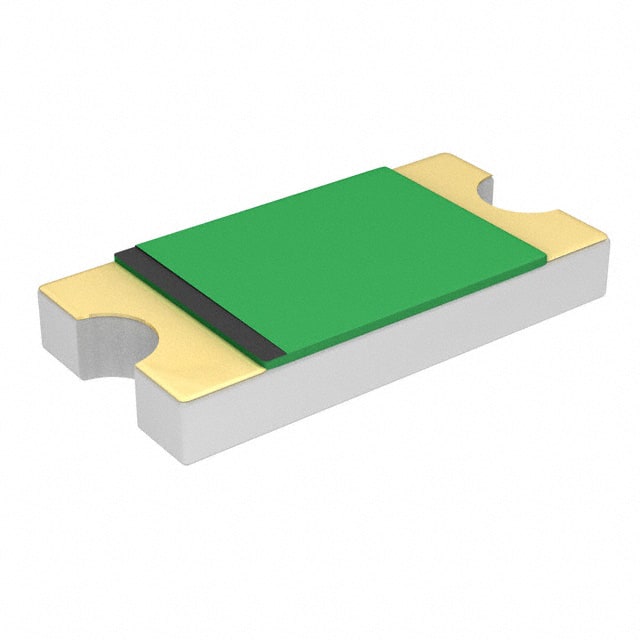

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

0ZCG0150AF2C

Manufacturer
Bel Fuse Inc.
Manufacturer Product Number
0ZCG0150AF2C
Description
PTC RESET FUSE 12V 1.5A 1812
Product Status
Active
Detailed Description
Polymeric PTC Resettable Fuse 12V 1.5 A Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet
0ZCG0150AF2C Datasheet
EDA/CAD Models
0ZCG0150AF2C Models

Product Attributes

Mfr Bel Fuse Inc.
Series 0ZCG
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Product Status Active
Type Polymeric
Voltage - Max 12V
Current - Max 100 A
Current - Hold (Ih) (Max) 1.5 A
Current - Trip (It) 3 A
Time to Trip 500 ms
Resistance - Initial (Ri) (Min) 40 mOhms
Resistance - Post Trip (R1) (Max) 110 mOhms
Operating Temperature -40°C ~ 85°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) -
Thickness (Max) 0.043" (1.10mm)
Lead Spacing -
Approval Agency AEC-Q200, cURus, TUV
Description Shipping Reviews (2)

Polymeric PTC Resettable Fuse 12V 1.5 A Ih Surface Mount 1812 (4532 Metric), Concave
