ACNT-H313-000E

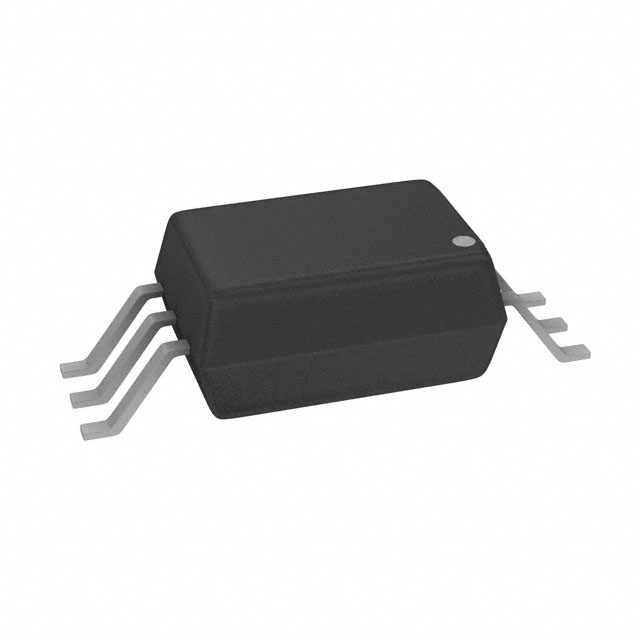

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

ACNT-H313-000E

Manufacturer
Broadcom Limited
Manufacturer Product Number
ACNT-H313-000E
Description
OPTOISO 7.5KV 1CH GATE DRVR 8SO
Product Status
Active
Detailed Description
2.5A Gate Driver Optical Coupling 7500Vrms 1 Channel 8-SO Stretched
Datasheet
ACNT-H313-000E Datasheet
EDA/CAD Models
ACNT-H313-000E Models

Product Attributes

Mfr Broadcom Limited
Series -
Package Bulk
Product Status Active
Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 7500Vrms
Common Mode Transient Immunity (Min) 40kV/µs
Propagation Delay tpLH / tpHL (Max) 500ns, 500ns
Pulse Width Distortion (Max) 300ns
Rise / Fall Time (Typ) 100ns, 100ns
Current - Output High, Low 2A, 2A
Current - Peak Output 2.5A
Voltage - Forward (Vf) (Typ) 1.45V
Current - DC Forward (If) (Max) 25 mA
Voltage - Output Supply 15V ~ 30V
Operating Temperature -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package 8-SO Stretched
Approval Agency CSA, IEC/EN/DIN, UR
Base Product Number ACNT-H313
Description Shipping Reviews (2)

2.5A Gate Driver Optical Coupling 7500Vrms 1 Channel 8-SO Stretched
