ACPL-T350-560E

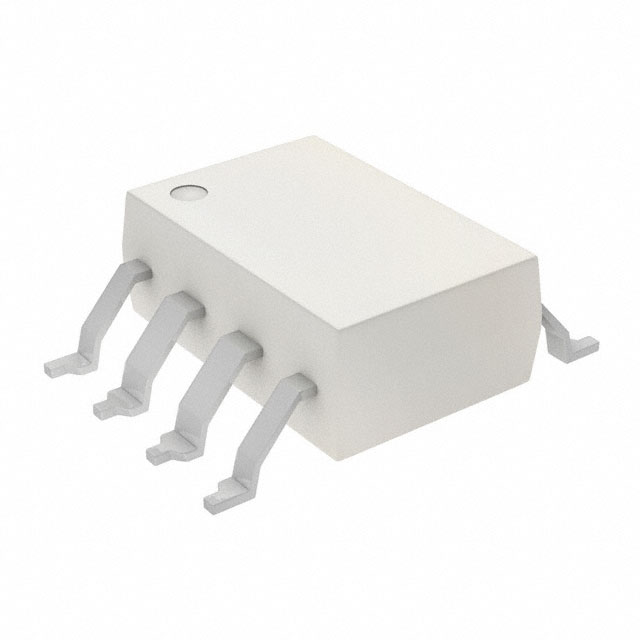

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

ACPL-T350-560E

Manufacturer
Broadcom Limited
Manufacturer Product Number
ACPL-T350-560E
Description
OPTOISO 3.75KV GATE DRVR 8DIP GW
Product Status
Active
Detailed Description
2.5A Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP Gull Wing
Datasheet
ACPL-T350-560E Datasheet
EDA/CAD Models
ACPL-T350-560E Models

Product Attributes

Mfr Broadcom Limited
Series -
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Product Status Active
Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 15kV/µs
Propagation Delay tpLH / tpHL (Max) 500ns, 500ns
Pulse Width Distortion (Max) 300ns
Rise / Fall Time (Typ) 15ns, 20ns
Current - Output High, Low 2A, 2A
Current - Peak Output 2.5A
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Max) 25 mA
Voltage - Output Supply 15V ~ 30V
Operating Temperature -40°C ~ 100°C
Mounting Type Surface Mount
Package / Case 8-SMD, Gull Wing
Supplier Device Package 8-DIP Gull Wing
Approval Agency CSA, IEC/EN/DIN, UR
Base Product Number ACPL-T350
Description Shipping Reviews (2)

2.5A Gate Driver Optical Coupling 3750Vrms 1 Channel 8-DIP Gull Wing
