RD07A10CVAT

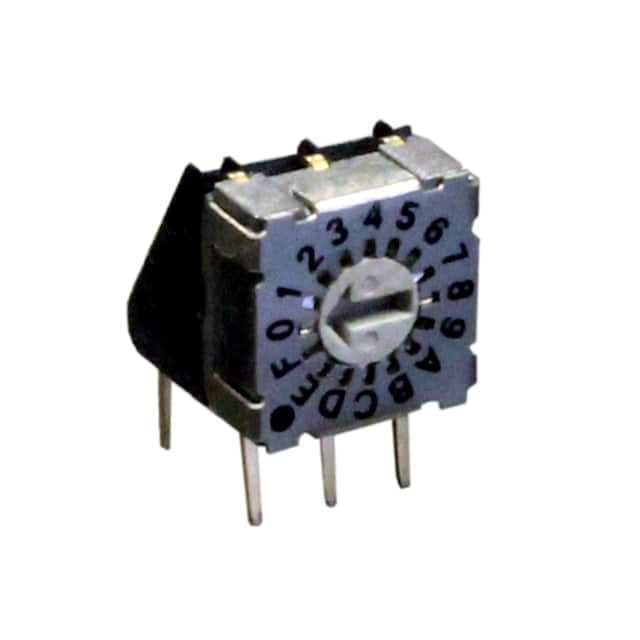

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

RD07A10CVAT

Manufacturer
CIT Relay and Switch
Manufacturer Product Number
RD07A10CVAT
Description
SWITCH ROTARY DIP 10POS 0.1A 50V
Product Status
Active
Detailed Description
Dip Switch BCD Complement 10 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 50VDC
Datasheet
RD07A10CVAT Datasheet
EDA/CAD Models
RD07A10CVAT Models

Product Attributes

Actuator Level Flush, Recessed
Actuator Type Rotary for Tool
Body Material Liquid Crystal Polymer (LCP)
Circuit BCD Complement
Contact Finish Gold
Contact Material Copper Alloy
Current Rating (Amps) 100mA
Electrical Life 25,000 Steps
Features -
Height Above Board 0.291" (7.40mm)
Length 0.291" (7.40mm)
Mechanical Life -
Mfr CIT Relay and Switch
Mounting Type Through Hole, Right Angle
Number of Positions 10
Operating Temperature -40°C ~ 85°C
Package Tube
Pitch 0.100" (2.54mm), Full
Product Status Active
Series RD07
Termination Style PC Pin
Voltage Rating 50VDC
Washable No
Description Shipping Reviews (2)

Dip Switch BCD Complement 10 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 50VDC
