APCI00121260331MY0

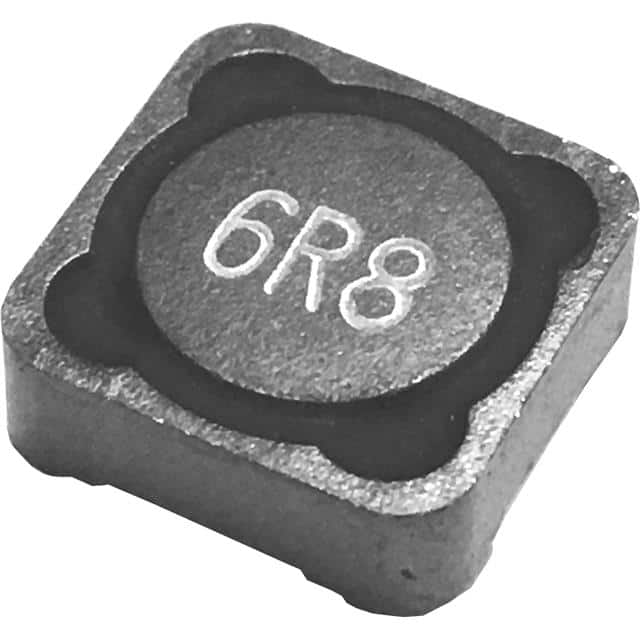

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

APCI00121260331MY0

Manufacturer
Chilisin Electronics
Manufacturer Product Number
APCI00121260331MY0
Description
INDUCTOR POWER
Product Status
Active
Detailed Description
330 µH Shielded Drum Core, Wirewound Inductor 680 mA 510mOhm Max Nonstandard
Datasheet
APCI00121260331MY0 Datasheet
EDA/CAD Models
APCI00121260331MY0 Models

Product Attributes

Mfr Chilisin Electronics
Series APCI
Package Tape & Reel (TR)
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 µH
Tolerance ±20%
Current Rating (Amps) 680 mA
Current - Saturation (Isat) 680mA
Shielding Shielded
DC Resistance (DCR) 510mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Description Shipping Reviews (2)

330 µH Shielded Drum Core, Wirewound Inductor 680 mA 510mOhm Max Nonstandard
