135-9436-001

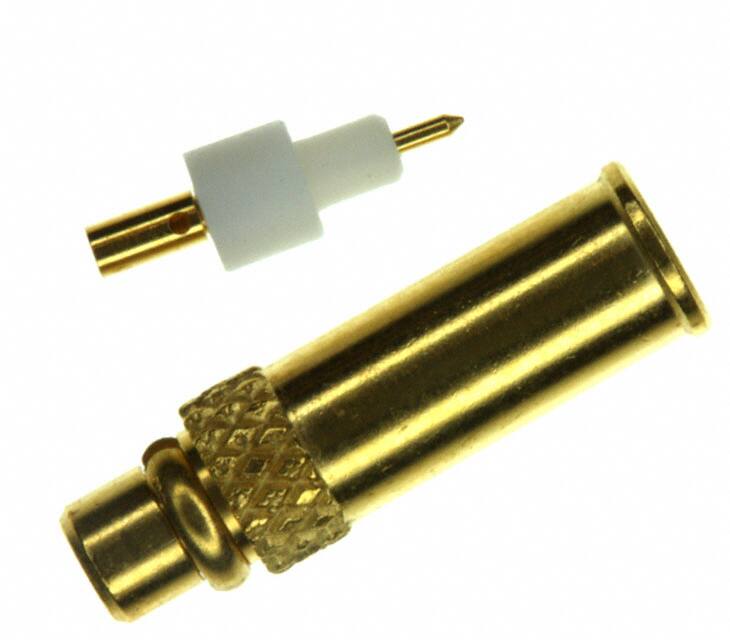

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

135-9436-001

Manufacturer
Cinch Connectivity Solutions Johnson
Manufacturer Product Number
135-9436-001
Description
CONN MMCX PLUG STR 50 OHM CRIMP
Product Status
Active
Detailed Description
MMCX Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Crimp or Solder
Datasheet
135-9436-001 Datasheet
EDA/CAD Models
135-9436-001 Models

Product Attributes

Base Product Number 135-9436
Body Finish Gold
Body Material Copper Alloy
Cable Group 0.047" Semi Rigid
Center Contact Material Beryllium Copper
Center Contact Plating Gold
Connector Style MMCX
Connector Type Plug, Male Pin
Contact Termination Crimp or Solder
Dielectric Material Polytetrafluoroethylene (PTFE)
Fastening Type Snap-On
Features Non-Magnetic
Frequency - Max 6 GHz
Housing Color Gold
Impedance 50Ohm
Includes 2 pcs - 1 Connector, 1 Contact
Ingress Protection -
Insertion Loss 0.1dB
Mating Cycles 500
Mfr Cinch Connectivity Solutions Johnson
Mounting Feature -
Mounting Type Free Hanging (In-Line)
Number of Ports 1
Operating Temperature -55°C ~ 155°C
Package Bulk
Product Status Active
Series -
Shield Termination Crimp
Voltage Rating 170 V
Description Shipping Reviews (2)

MMCX Connector Plug, Male Pin 50Ohm Free Hanging (In-Line) Crimp or Solder
