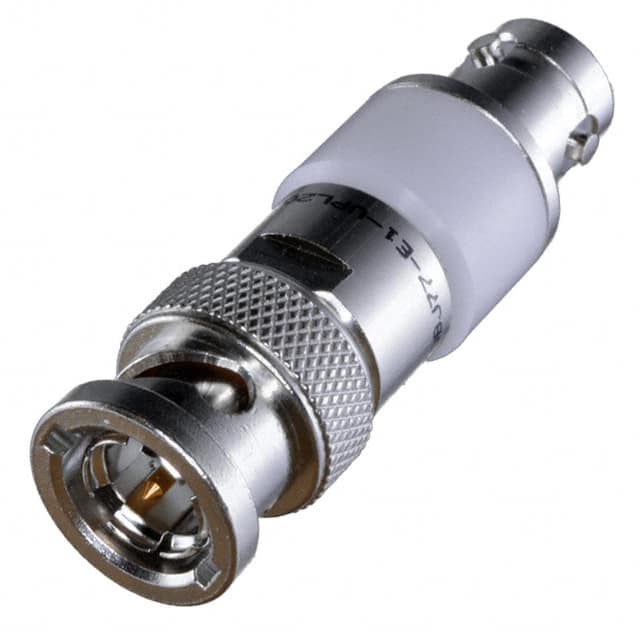

ADBJ77-E1-PL20

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

ADBJ77-E1-PL20

Manufacturer
Cinch Connectivity Solutions Trompeter
Manufacturer Product Number
ADBJ77-E1-PL20
Description
CONN ADAPT BNC PLUG TO TRB JACK
Product Status
Active
Detailed Description
Adapter Coaxial Connector BNC Plug, Male Pin To TRB Twinaxial/Triaxial Jack, Female Socket 50Ohm
Datasheet
ADBJ77-E1-PL20 Datasheet
EDA/CAD Models
ADBJ77-E1-PL20 Models

Product Attributes

Mfr Cinch Connectivity Solutions Trompeter
Series -
Package Bulk
Product Status Active
Adapter Type Plug to Jack
Conversion Type Between Series
Adapter Series BNC to TRB Twinaxial/Triaxial
Center Gender Female to Male
Convert From (Adapter End) BNC Plug, Male Pin
Convert To (Adapter End) TRB Twinaxial/Triaxial Jack, Female Socket
Impedance 50Ohm
Style Straight
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Fastening Type Bayonet Lock, Bayonet Lock
Frequency - Max 500 MHz
Ingress Protection -
Center Contact Plating Gold
Features Three Lug
Includes -
Body Material Brass
Body Finish Nickel
Center Contact Material -
Dielectric Material -
Mating Cycles -
Insertion Loss -
Operating Temperature -
Base Product Number ADBJ77-E1
Description Shipping Reviews (2)

Adapter Coaxial Connector BNC Plug, Male Pin To TRB Twinaxial/Triaxial Jack, Female Socket 50Ohm
