10-486-B36

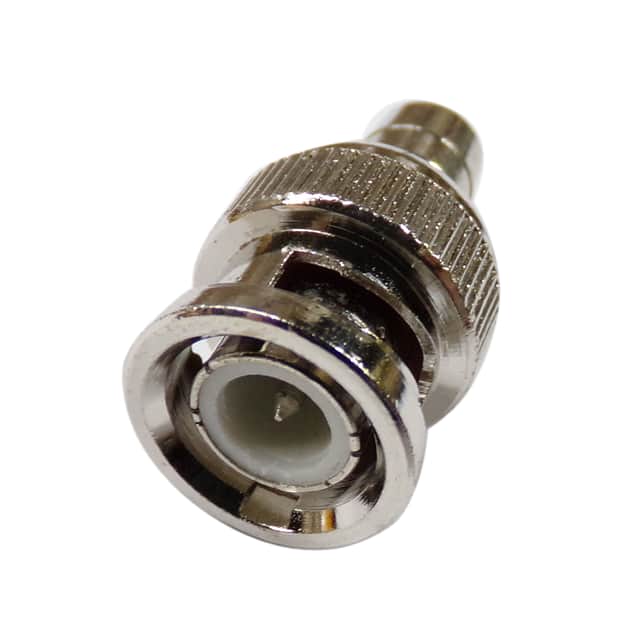

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

10-486-B36

Manufacturer
Coax Connectors Ltd
Manufacturer Product Number
10-486-B36
Description
BNC STRAIGHT PCB 75 OHM JACK (3
Product Status
Active
Detailed Description
BNC Connector Jack, Female Socket 75Ohm Through Hole Solder
Datasheet
10-486-B36 Datasheet
EDA/CAD Models
10-486-B36 Models

Product Attributes

Mfr Coax Connectors Ltd
Series -
Package Retail Package
Product Status Active
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75Ohm
Mounting Type Through Hole
Mounting Feature -
Cable Group -
Fastening Type Bayonet Lock
Frequency - Max 4.5 GHz
Number of Ports 1
Features -
Housing Color Silver
Ingress Protection IP64 - Dust Tight, Water Resistant
Center Contact Material Beryllium Copper
Includes -
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature -55°C ~ 155°C
Mating Cycles 500
Insertion Loss -
Base Product Number 10-486
Description Shipping Reviews (2)

BNC Connector Jack, Female Socket 75Ohm Through Hole Solder
