A402S1RNZQ

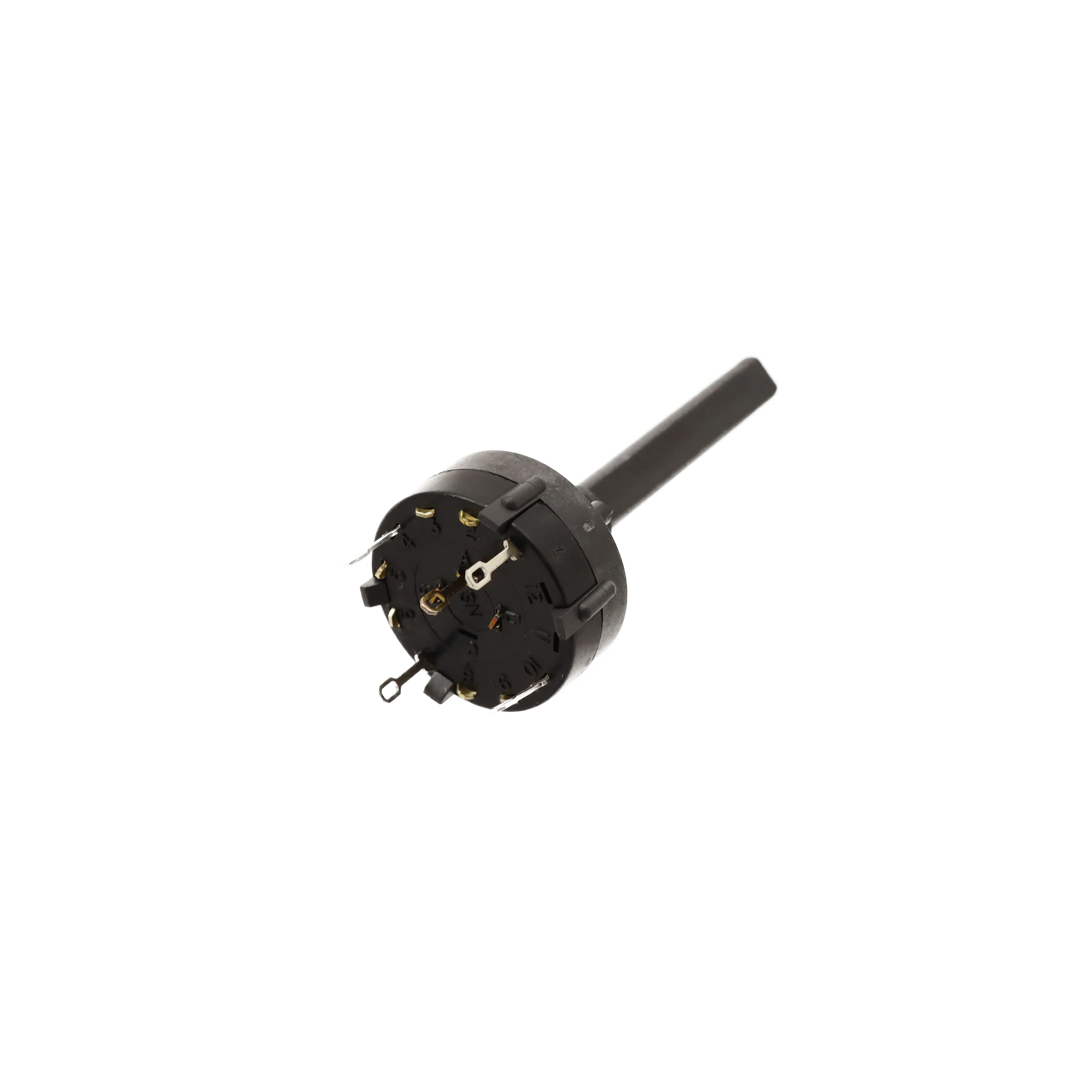

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

A402S1RNZQ

Manufacturer
C&K
Manufacturer Product Number
A402S1RNZQ
Description
SWITCH ROTARY 2POS 2.5A 125V
Product Status
Active
Detailed Description
Rotary Switch 2 Position 4PDT 2.5A (AC), 350mA (DC) 125 VAC Panel Mount
Datasheet
A402S1RNZQ Datasheet
EDA/CAD Models
A402S1RNZQ Models

Product Attributes

Mfr C&K
Series A
Package Tray
Product Status Active
Number of Positions 2
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 4
Circuit per Deck 4PDT
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 2.5A (AC), 350mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Screwdriver Slot
Actuator Length Flush
Angle of Throw 30°
Contact Material Silver (Ag)
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Features -
Depth Behind Panel 20.83mm
Panel Cutout Dimensions Circular - 9.80mm Dia
Base Product Number A402S1RN
Description Shipping Reviews (2)

Rotary Switch 2 Position 4PDT 2.5A (AC), 350mA (DC) 125 VAC Panel Mount
