Y1907U2C807NQ

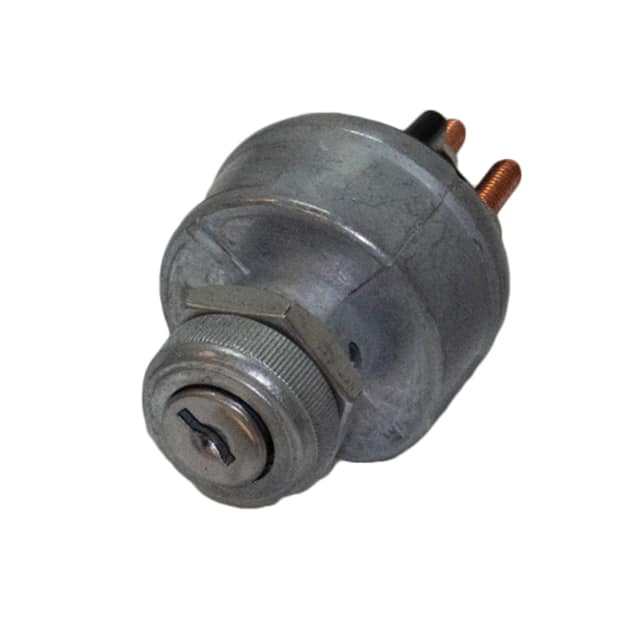

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Y1907U2C807NQ

Manufacturer
C&K
Manufacturer Product Number
Y1907U2C807NQ
Description
SWITCH KEYLOCK 3POS SP3T 4A 125V
Product Status
Active
Detailed Description
Keylock Switch 3 Position SP3T 4A (AC/DC) 125 VAC 28 VDC Panel Mount
Datasheet
Y1907U2C807NQ Datasheet
EDA/CAD Models
Y1907U2C807NQ Models

Product Attributes

Mfr C&K
Series Y
Package Tray
Product Status Active
Circuit SP3T
Number of Positions 3
Switch Function On-On-On
Contact Timing Not Specified
Current Rating (Amps) 4A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 28 V
Actuator Type Flat Key
Key Removable Positions All
Angle of Throw 90°
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 19.30mm Dia
Features -
Operating Temperature -
Depth Behind Flange 27.81mm
Mechanical Life -
Electrical Life 10,000 Cycles
Base Product Number Y1907U2C
Description Shipping Reviews (2)

Keylock Switch 3 Position SP3T 4A (AC/DC) 125 VAC 28 VDC Panel Mount
