EL3H7(E)(TA)-G

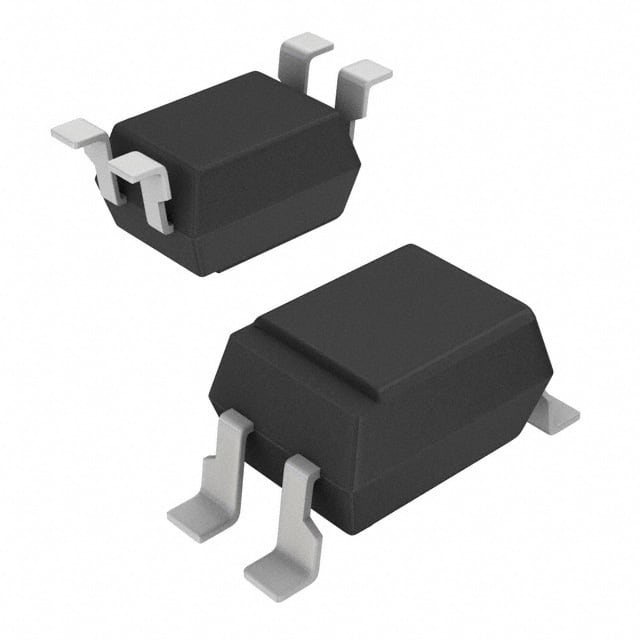

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

EL3H7(E)(TA)-G

Manufacturer
Everlight Electronics Co Ltd
Manufacturer Product Number
EL3H7(E)(TA)-G
Description
OPTOISOLATOR 3.75KV TRANS 4-SSOP
Product Status
Active
Detailed Description
Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP
Datasheet
EL3H7(E)(TA)-G Datasheet
EDA/CAD Models
EL3H7(E)(TA)-G Models

Product Attributes

Mfr Everlight Electronics Co Ltd
Series -
Package Tape & Reel (TR)
Product Status Active
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 200% @ 5mA
Turn On / Turn Off Time (Typ) -
Rise / Fall Time (Typ) 5µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 200mV
Operating Temperature -55°C ~ 110°C
Mounting Type Surface Mount
Package / Case 4-SOIC (0.173", 4.40mm Width)
Supplier Device Package 4-SSOP
Base Product Number EL3H7
Description Shipping Reviews (2)

Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP
