GD2X30MPS12D

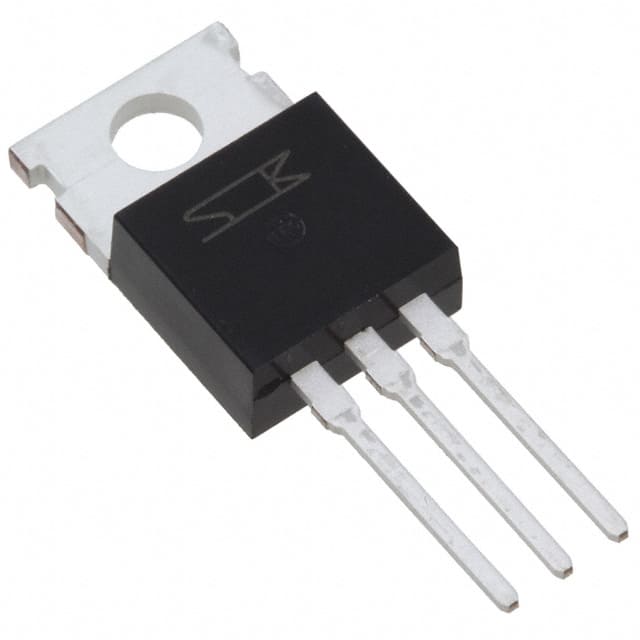

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

GD2X30MPS12D

Manufacturer
GeneSiC Semiconductor
Manufacturer Product Number
GD2X30MPS12D
Description
DIODE SCHOTTKY 1200V 2X30A TO-24
Product Status
Active
Detailed Description
Diode Array 1 Pair Common Cathode Silicon Carbide Schottky 1200 V 55A (DC) Through Hole TO-247-3
Datasheet
GD2X30MPS12D Datasheet
EDA/CAD Models
GD2X30MPS12D Models

Product Attributes

Base Product Number GD2X
Current - Average Rectified (Io) (per Diode) 55A (DC)
Current - Reverse Leakage @ Vr 20 µA @ 1200 V
Diode Configuration 1 Pair Common Cathode
Diode Type Silicon Carbide Schottky
Mfr GeneSiC Semiconductor
Mounting Type Through Hole
Operating Temperature - Junction -55°C ~ 175°C
Package Tube
Package / Case TO-247-3
Product Status Active
Series SiC Schottky MPS™
Speed Fast Recovery =< 500ns, > 200mA (Io)
Supplier Device Package TO-247-3
Voltage - DC Reverse (Vr) (Max) 1200 V
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 30 A
Description Shipping Reviews (2)

Diode Array 1 Pair Common Cathode Silicon Carbide Schottky 1200 V 55A (DC) Through Hole TO-247-3
