12.88523

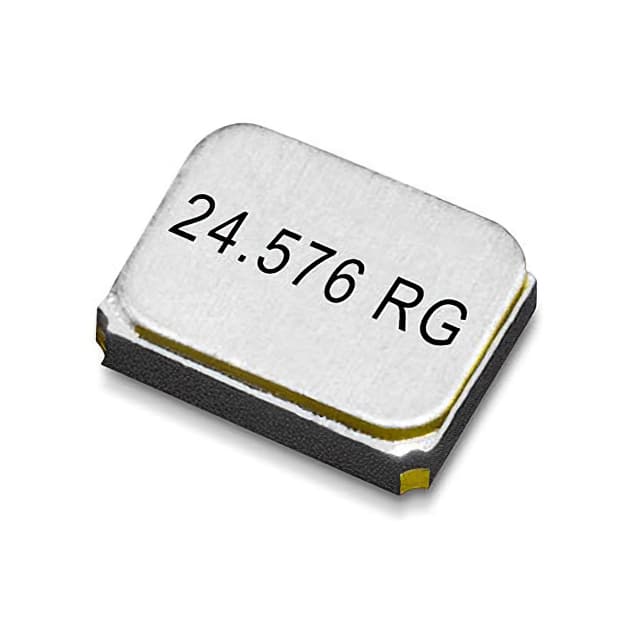

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

12.88523

Manufacturer
Geyer Electronic America, Inc.
Manufacturer Product Number
12.88523
Description
Crystal 40.0Mhz 12pF SMD
Product Status
Active
Detailed Description
40 MHz ±30ppm Crystal 12pF 30 Ohms 4-SMD, No Lead
Datasheet
12.88523 Datasheet
EDA/CAD Models
12.88523 Models

Product Attributes

ESR (Equivalent Series Resistance) 30 Ohms
Frequency 40 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Height - Seated (Max) 0.031" (0.80mm)
Load Capacitance 12pF
Mfr Geyer Electronic America, Inc.
Mounting Type Surface Mount
Operating Mode Fundamental
Operating Temperature -40°C ~ 125°C
Package Tape & Reel (TR)
Package / Case 4-SMD, No Lead
Product Status Active
Ratings -
Series KX-7F
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Type MHz Crystal
Description Shipping Reviews (2)

40 MHz ±30ppm Crystal 12pF 30 Ohms 4-SMD, No Lead
