78J05T

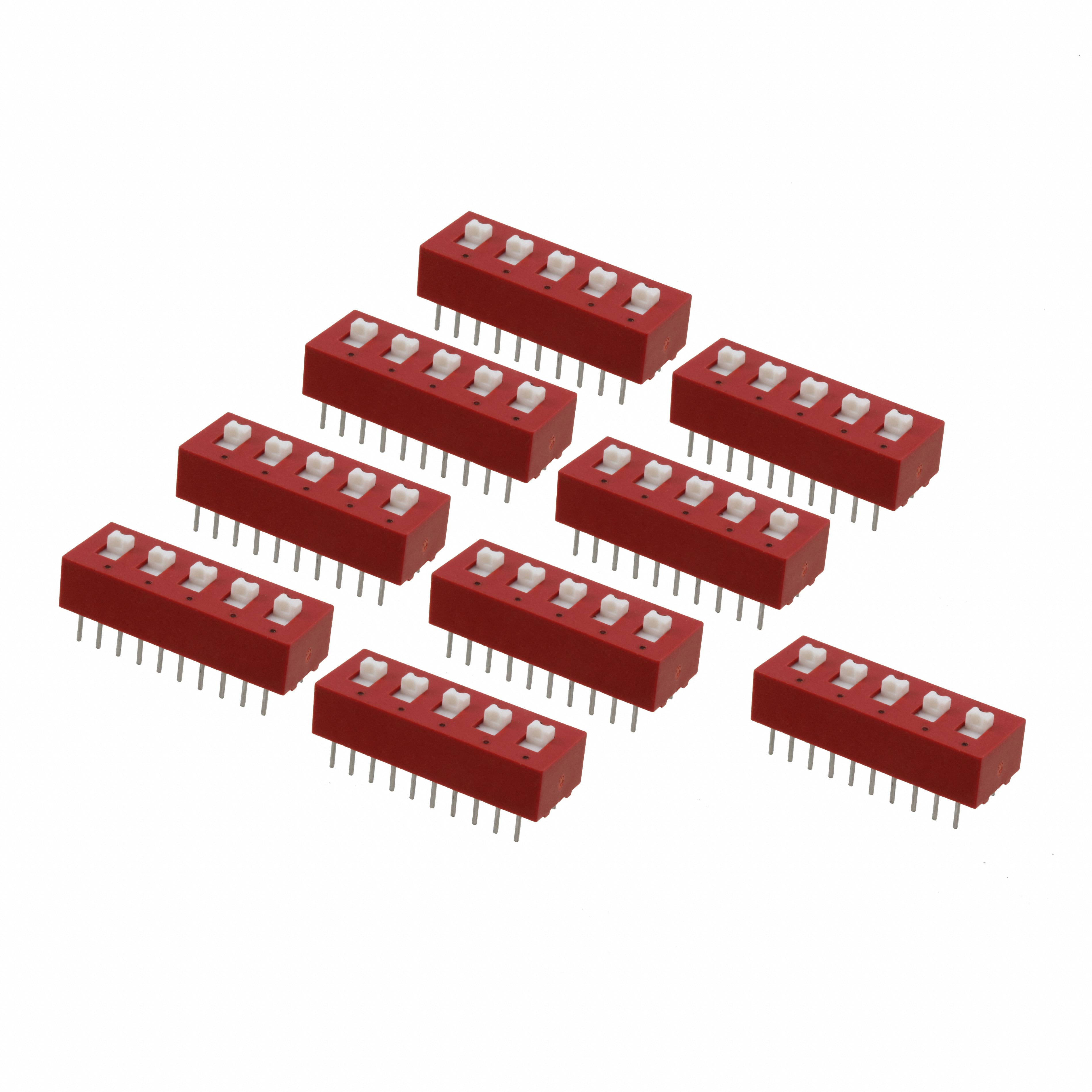

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

78J05T

Manufacturer
Grayhill Inc.
Manufacturer Product Number
78J05T
Description
SWITCH SLIDE DIP SPDT 150MA 30V
Product Status
Active
Detailed Description
Dip Switch SPDT 5 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
Datasheet
78J05T Datasheet
EDA/CAD Models
78J05T Models

Product Attributes

Actuator Level Raised
Actuator Type Slide (Standard)
Base Product Number 78J05
Body Material Thermoplastic
Circuit SPDT
Contact Finish Gold
Contact Material Copper Alloy
Current Rating (Amps) 150mA
Electrical Life 2,000 Cycles
Features -
Height Above Board 0.315" (8.00mm)
Length 1.080" (27.43mm)
Mechanical Life 2,000 Cycles
Mfr Grayhill Inc.
Mounting Type Through Hole
Number of Positions 5
Operating Temperature -40°C ~ 85°C
Package Tube
Pitch 0.100" (2.54mm), Full
Product Status Active
Series 78
Termination Style PC Pin
Voltage Rating 30VDC
Washable No
Description Shipping Reviews (2)

Dip Switch SPDT 5 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
