H2071ZS1

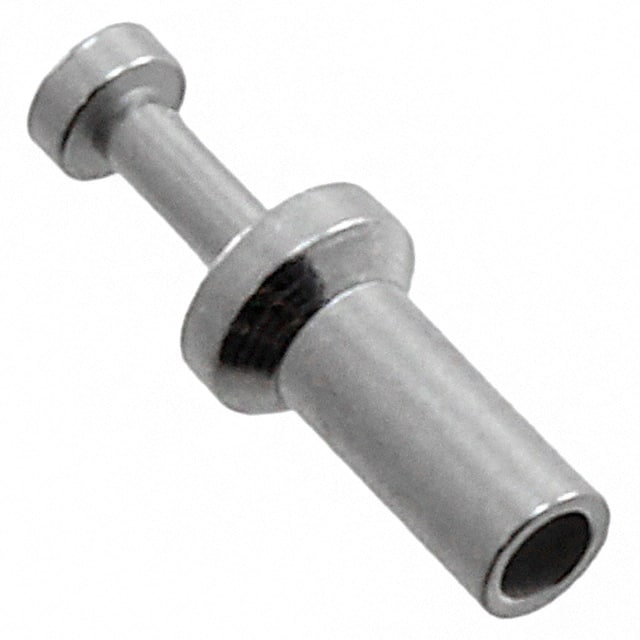

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

H2071ZS1

Manufacturer
Harwin Inc.
Manufacturer Product Number
H2071ZS1
Description
TERM TURRET SLOTTED L=9.12MM TIN
Product Status
Active
Detailed Description
Terminal Turret Connector Single End, Fork 0.359" (9.12mm) Tin
Datasheet
H2071ZS1 Datasheet
EDA/CAD Models
H2071ZS1 Models

Product Attributes

Mfr Harwin Inc.
Series -
Package Bulk
Product Status Active
Terminal Type Single End, Fork
Number of Turrets Triple
Length - Above Board 0.359" (9.12mm)
Length - Below Flange 0.094" (2.39mm)
Length - Overall 0.453" (11.51mm)
Mounting Type Through Hole
Termination Swage
Flange Diameter 0.187" (4.75mm)
Diameter - Turret Head 0.125" (3.18mm)
Staking Side OD 0.100" ~ 0.105" (2.54mm ~ 2.67mm)
Staking Side ID 0.067" ~ 0.070" (1.70mm ~ 1.78mm)
Mounting Hole Diameter 0.105" ~ 0.109" (2.67mm ~ 2.77mm)
Board Thickness 0.063" (1.60mm)
Contact Material Brass Alloy
Contact Finish Tin
Contact Finish Thickness -
Insulation Non-Insulated
Material - Insulation -
Insulation Color -
Description Shipping Reviews (2)

Terminal Turret Connector Single End, Fork 0.359" (9.12mm) Tin
