H3051-01

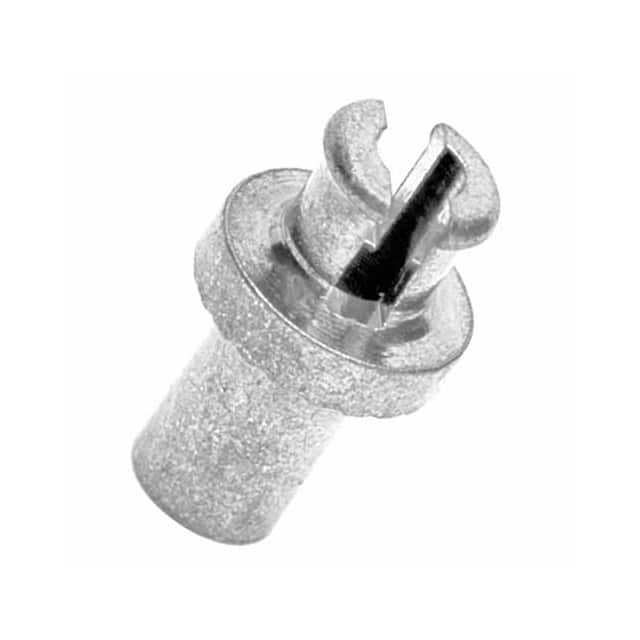

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

H3051-01

Manufacturer
Harwin Inc.
Manufacturer Product Number
H3051-01
Description
TERM TURRET HOLLOW L=6.27-6.6MM
Product Status
Active
Detailed Description
Terminal Turret Connector Single End, Fork, Hollow 0.247" ~ 0.260" (6.27mm ~ 6.60mm) Tin
Datasheet
H3051-01 Datasheet
EDA/CAD Models
H3051-01 Models

Product Attributes

Base Product Number H3051
Board Thickness 0.063" (1.60mm)
Contact Finish Tin
Contact Finish Thickness -
Contact Material Brass Alloy
Diameter - Turret Head -
Flange Diameter 0.153" ~ 0.159" (3.88mm ~ 4.04mm)
Insulation Non-Insulated
Insulation Color -
Length - Above Board 0.247" ~ 0.260" (6.27mm ~ 6.60mm)
Length - Below Flange 0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Overall 0.346" ~ 0.354" (8.79mm ~ 8.99mm)
Material - Insulation -
Mfr Harwin Inc.
Mounting Hole Diameter 0.084" ~ 0.087" (2.13mm ~ 2.21mm)
Mounting Type Through Hole
Number of Turrets Single
Package Bulk
Product Status Active
Series -
Staking Side ID -
Staking Side OD 0.080" ~ 0.083" (2.03mm ~ 2.12mm)
Terminal Type Single End, Fork, Hollow
Termination Swage
Description Shipping Reviews (2)

Terminal Turret Connector Single End, Fork, Hollow 0.247" ~ 0.260" (6.27mm ~ 6.60mm) Tin
