H9039-01

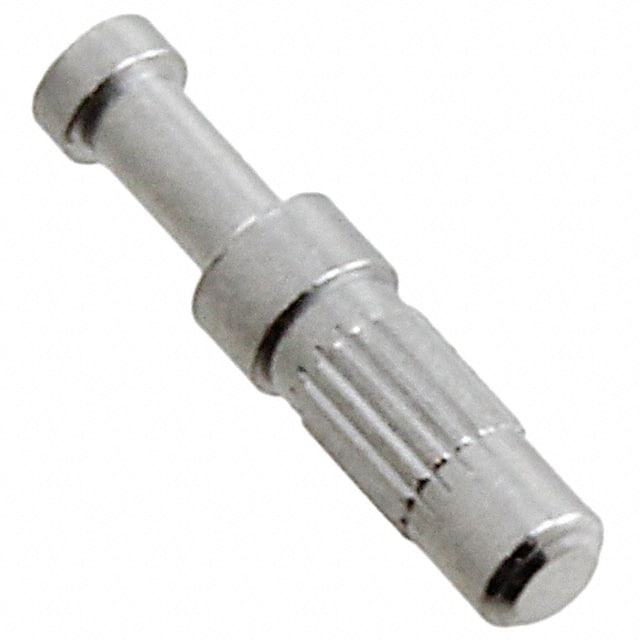

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

H9039-01

Manufacturer
Harwin Inc.
Manufacturer Product Number
H9039-01
Description
TERM TURRET HOLLOW L=9.53MM TIN
Product Status
Active
Detailed Description
Terminal Turret Connector Single End, Fork, Hollow 0.375" (9.53mm) Tin
Datasheet
H9039-01 Datasheet
EDA/CAD Models
H9039-01 Models

Product Attributes

Mfr Harwin Inc.
Series -
Package Bulk
Product Status Obsolete
Terminal Type Single End, Fork, Hollow
Number of Turrets Single
Length - Above Board 0.375" (9.53mm)
Length - Below Flange 0.141" (3.58mm)
Length - Overall 0.516" (13.11mm)
Mounting Type Through Hole
Termination Swage, Knurled
Flange Diameter 0.199" (5.06mm)
Diameter - Turret Head -
Staking Side OD 0.150" ~ 0.152" (3.81mm ~ 3.86mm)
Staking Side ID -
Mounting Hole Diameter 0.147" ~ 0.149" (3.74mm ~ 3.79mm)
Board Thickness 0.126" (3.20mm)
Contact Material Brass Alloy
Contact Finish Tin
Contact Finish Thickness -
Insulation Non-Insulated
Material - Insulation -
Insulation Color -
Description Shipping Reviews (2)

Terminal Turret Connector Single End, Fork, Hollow 0.375" (9.53mm) Tin
