IMSA-11501S-60B-GFN1

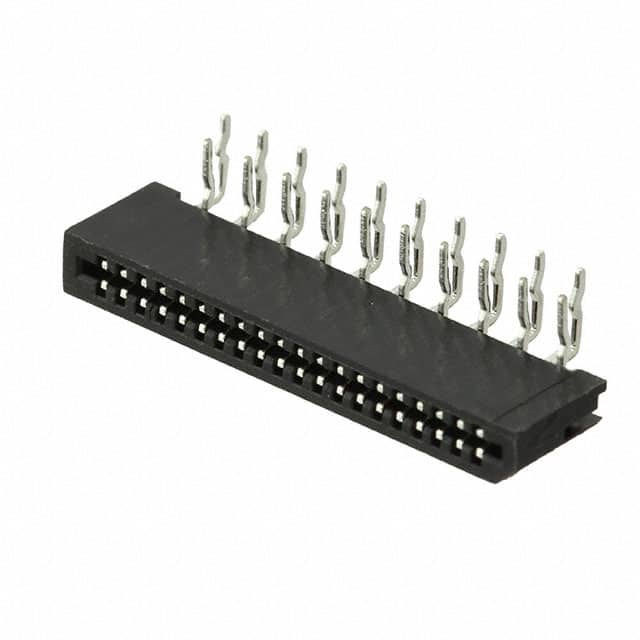

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

IMSA-11501S-60B-GFN1

Manufacturer
IRISO USA Inc.
Manufacturer Product Number
IMSA-11501S-60B-GFN1
Description
CONN FFC R/A .5MM 60POS
Product Status
Active
Detailed Description
60 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
IMSA-11501S-60B-GFN1 Datasheet
EDA/CAD Models
IMSA-11501S-60B-GFN1 Models

Product Attributes

Mfr IRISO USA Inc.
Series 11501
Package Tape & Reel (TR), Cut Tape (CT)
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 60
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.134" (3.40mm)
Locking Feature -
Cable End Type Notched
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material -
Features Solder Retention
Voltage Rating 50V
Operating Temperature -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness -
Housing Color Black
Actuator Color -
Mating Cycles -
Base Product Number IMSA-115
Description Shipping Reviews (2)

60 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
