L201314A-102LHF

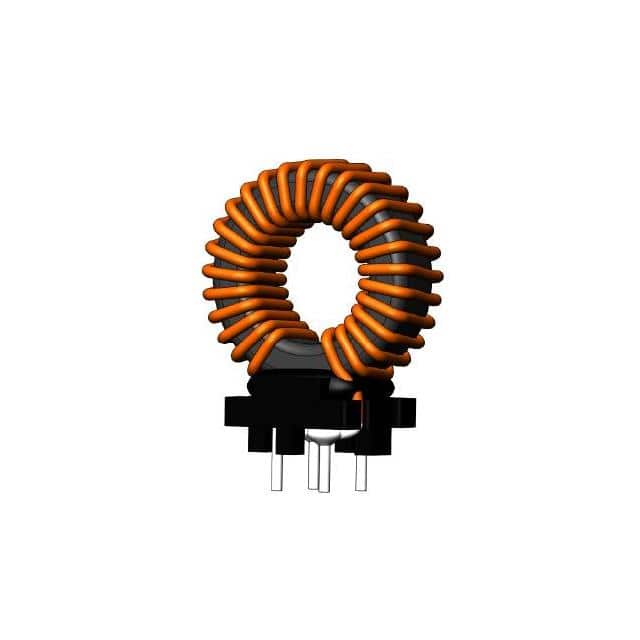

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

L201314A-102LHF

Manufacturer
ITG Electronics, Inc.
Manufacturer Product Number
L201314A-102LHF
Description
1000.00UH, 15%, 950.00MOHM, 1.1A
Product Status
Active
Detailed Description
1000 µH Toroidal Inductor 1.1 A 950mOhm Max Radial, Vertical Cylinder, 4 Leads (Open)
Datasheet
L201314A-102LHF Datasheet
EDA/CAD Models
L201314A-102LHF Models

Product Attributes

Current - Saturation (Isat) 1A
Current Rating (Amps) 1.1 A
DC Resistance (DCR) 950mOhm Max
Height - Seated (Max) 1.161" (29.50mm)
Inductance 1000 µH
Inductance Frequency - Test 100 kHz
Material - Core Sendust
Mfr ITG Electronics, Inc.
Mounting Type Through Hole
Operating Temperature -55°C ~ 130°C
Package Tray
Package / Case Radial, Vertical Cylinder, 4 Leads (Open)
Product Status Active
Series L201314A
Size / Dimension 0.984" L x 0.610" W (25.00mm x 15.50mm)
Tolerance ±15%
Type Toroidal
Description Shipping Reviews (2)

1000 µH Toroidal Inductor 1.1 A 950mOhm Max Radial, Vertical Cylinder, 4 Leads (Open)
