20698-028E-01

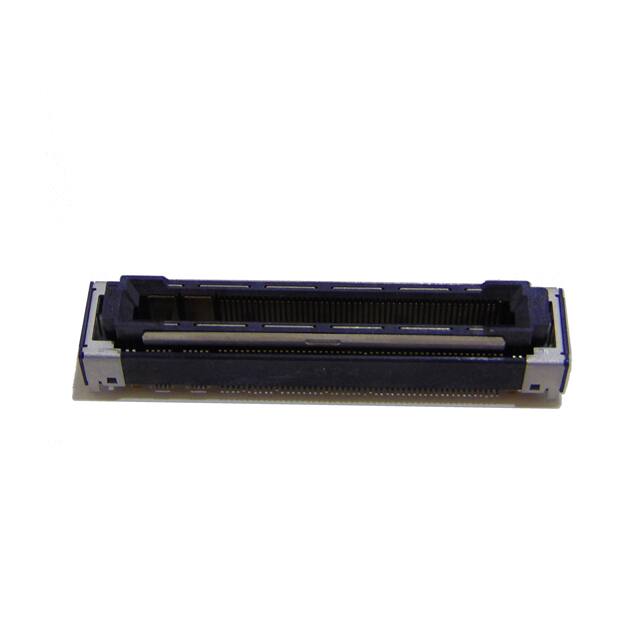

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

20698-028E-01

Manufacturer
I-PEX
Manufacturer Product Number
20698-028E-01
Description
NOVASTACK 35-HDP RECEPTACLE 28P
Product Status
Active
Detailed Description
32 (28 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
20698-028E-01 Datasheet
EDA/CAD Models
20698-028E-01 Models

Product Attributes

Base Product Number 20698
Connector Type Receptacle, Center Strip Contacts
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Features Shielded
Height Above Board 0.023" (0.59mm)
Mated Stacking Heights 0.7mm
Mfr I-PEX
Mounting Type Surface Mount
Number of Positions 32 (28 + 4 Power)
Number of Rows 2
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Pitch 0.014" (0.35mm)
Product Status Active
Series NOVASTACK® 35
Description Shipping Reviews (2)

32 (28 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
