B9P-VH-B(LF)(SN)

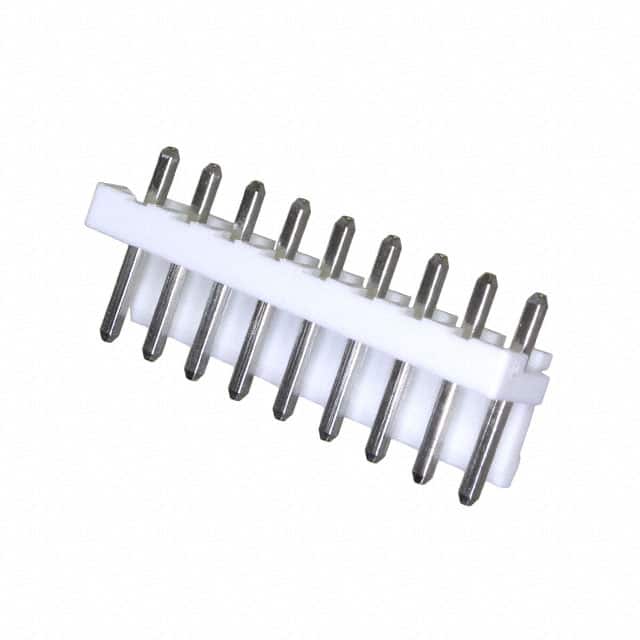

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

B9P-VH-B(LF)(SN)

Manufacturer
JST Sales America Inc.
Manufacturer Product Number
B9P-VH-B(LF)(SN)
Description
CONN HEADER VERT 9POS 3.96MM
Product Status
Active
Detailed Description
Connector Header Through Hole 9 position 0.156" (3.96mm)
Datasheet
B9P-VH-B(LF)(SN) Datasheet
EDA/CAD Models
B9P-VH-B(LF)(SN) Models

Product Attributes

Mfr JST Sales America Inc.
Series VH
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 9
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.146" (3.70mm)
Overall Contact Length 0.575" (14.60mm)
Insulation Height 0.370" (9.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features -
Operating Temperature -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 10A
Voltage Rating 250V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number B9P-VH
Description Shipping Reviews (2)

Connector Header Through Hole 9 position 0.156" (3.96mm)
