BM08B-GVHS-TB(LF)(SN)

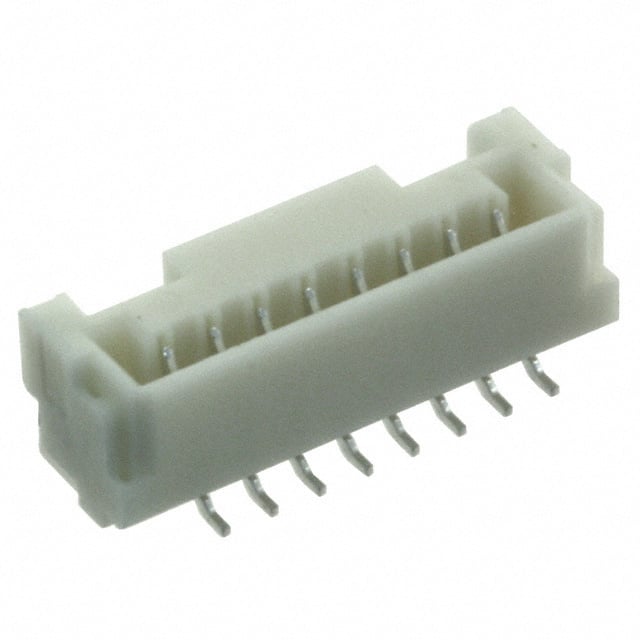

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

BM08B-GVHS-TB(LF)(SN)

Manufacturer
JST Sales America Inc.
Manufacturer Product Number
BM08B-GVHS-TB(LF)(SN)
Description
CONN HEADER SMD 8POS 1.25MM
Product Status
Active
Detailed Description
Connector Header Surface Mount 8 position 0.049" (1.25mm)
Datasheet
BM08B-GVHS-TB(LF)(SN) Datasheet
EDA/CAD Models
BM08B-GVHS-TB(LF)(SN) Models

Product Attributes

Mfr JST Sales America Inc.
Series GVH
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Product Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Number of Positions 8
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating -
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.159" (4.05mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Operating Temperature -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Mated Stacking Heights 8.8mm
Contact Finish Thickness - Post -
Applications -
Base Product Number BM08B-GV
Description Shipping Reviews (2)

Connector Header Surface Mount 8 position 0.049" (1.25mm)
