SMDJ13C

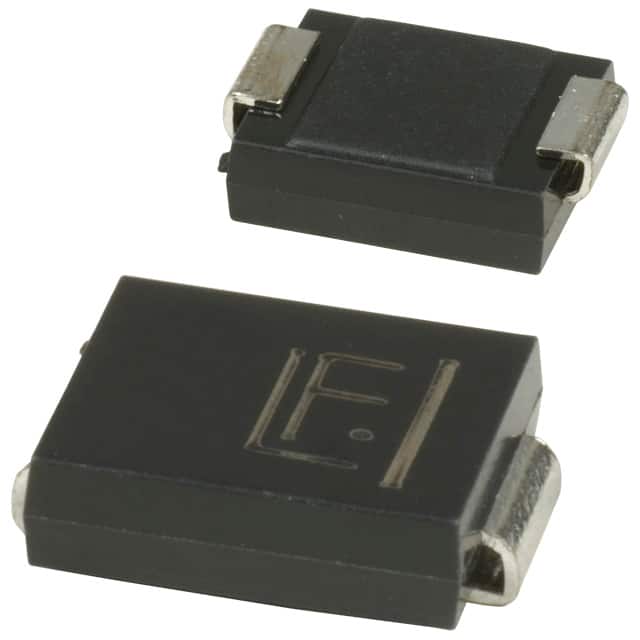

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

SMDJ13C

Manufacturer
Littelfuse Inc.
Manufacturer Product Number
SMDJ13C
Description
TVS DIODE 13VWM 22.58VC DO214AB
Product Status
Active
Detailed Description
22.58V Clamp 139.5A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Datasheet
SMDJ13C Datasheet
EDA/CAD Models
SMDJ13C Models

Product Attributes

Mfr Littelfuse Inc.
Series SMDJ
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 13V
Voltage - Breakdown (Min) 13.64V
Voltage - Clamping (Max) @ Ipp 22.58V
Current - Peak Pulse (10/1000µs) 139.5A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Operating Temperature -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMCJ)
Description Shipping Reviews (2)

22.58V Clamp 139.5A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
