TPSMF4L22A

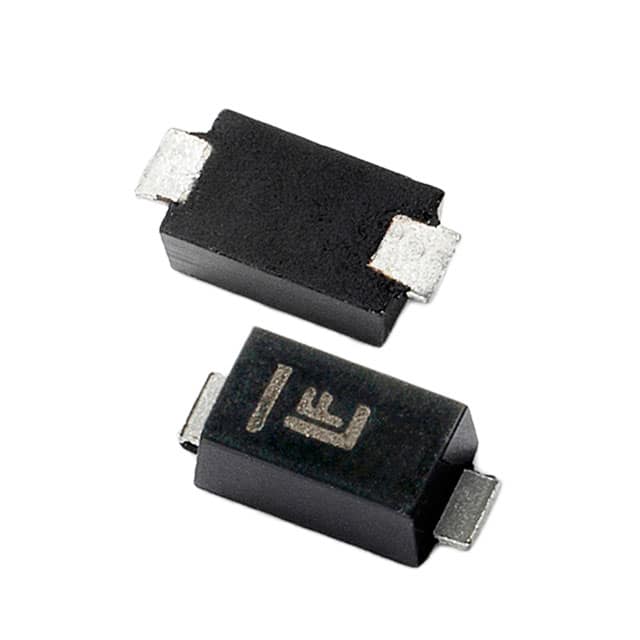

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

TPSMF4L22A

Manufacturer
Littelfuse Inc.
Manufacturer Product Number
TPSMF4L22A
Description
TVS DIODE 22VWM 35.5VC SOD123FL
Product Status
Active
Detailed Description
35.5V Clamp 11.3A Ipp Tvs Diode Surface Mount SOD-123F
Datasheet
TPSMF4L22A Datasheet
EDA/CAD Models
TPSMF4L22A Models

Product Attributes

Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, TPSMF4L
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22V
Voltage - Breakdown (Min) 24.4V
Voltage - Clamping (Max) @ Ipp 35.5V
Current - Peak Pulse (10/1000µs) 11.3A
Power - Peak Pulse 400W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency -
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123F
Description Shipping Reviews (2)

35.5V Clamp 11.3A Ipp Tvs Diode Surface Mount SOD-123F
