5.0SMDJ5.0CA

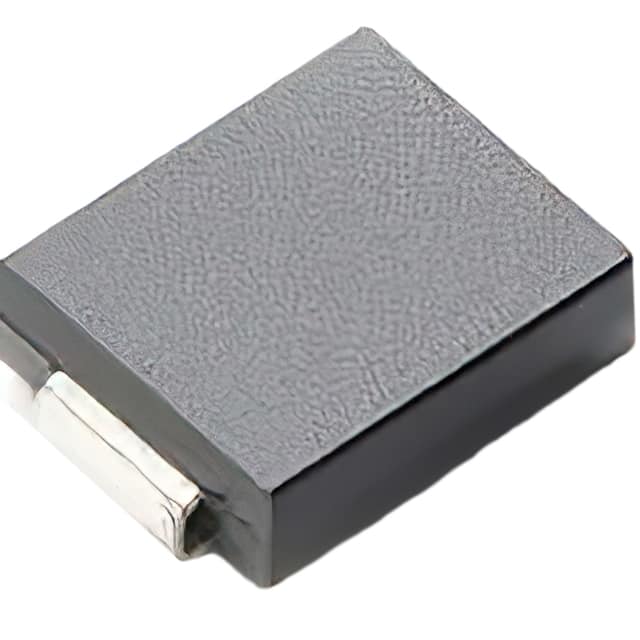

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

5.0SMDJ5.0CA

Manufacturer
MDE Semiconductor Inc
Manufacturer Product Number
5.0SMDJ5.0CA
Description
TVS DIODE UP 5VRWM 9.2VC
Product Status
Active
Detailed Description
9.2V Clamp 543.6A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Datasheet
5.0SMDJ5.0CA Datasheet
EDA/CAD Models
5.0SMDJ5.0CA Models

Product Attributes

Mfr MDE Semiconductor Inc
Series 5.0SMDJ
Package Tape & Reel (TR)
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 6.4V
Voltage - Clamping (Max) @ Ipp 9.2V
Current - Peak Pulse (10/1000µs) 543.6A
Power - Peak Pulse 5000W (5kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMCJ)
Description Shipping Reviews (2)

9.2V Clamp 543.6A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
