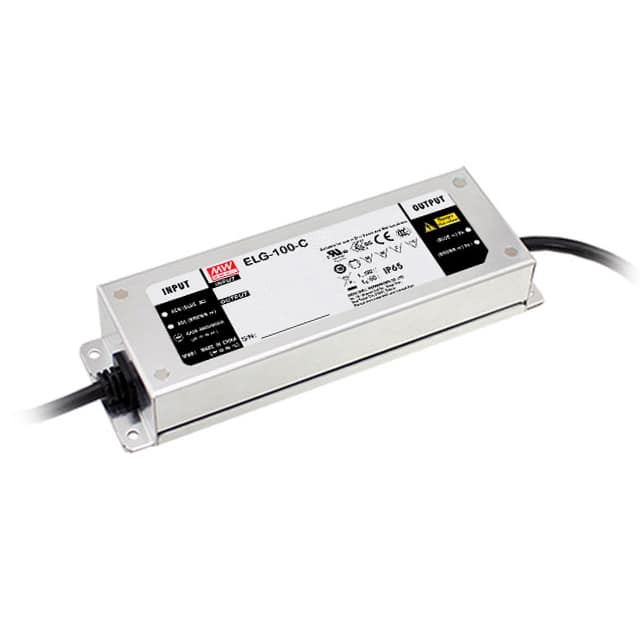

ELG-100-C500A

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

ELG-100-C500A

Manufacturer
MEAN WELL USA Inc.
Manufacturer Product Number
ELG-100-C500A
Description
LED DRVR CC AC/DC 100-200V 500MA
Product Status
Active
Detailed Description
500mA 100 ~ 200V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
ELG-100-C500A Datasheet
EDA/CAD Models
ELG-100-C500A Models

Product Attributes

Approval Agency CB, CCC, CE, cURus, ENEC
Base Product Number ELG-100
Current - Output (Max) 500mA
Dimming -
Efficiency 91%
Features OTP, OVP, SCP
Mfr MEAN WELL USA Inc.
Mounting Type Chassis Mount
Number of Outputs 1
Operating Temperature -40°C ~ 90°C
Package Box
Power (Watts) 100 W
Product Status Active
Ratings IP65
Series ELG-100-C (100W)
Size / Dimension 6.89" L x 2.48" W x 1.40" H (175.0mm x 63.0mm x 35.5mm)
Termination Style Wire Leads
Topology AC DC Converter
Type Constant Current
Voltage - Input (Max) 305VAC
Voltage - Input (Min) 100VAC
Voltage - Isolation 3.75 kV
Voltage - Output 100 ~ 200V
Description Shipping Reviews (2)

500mA 100 ~ 200V Constant Current LED Driver AC DC Converter Topology 1 Output
