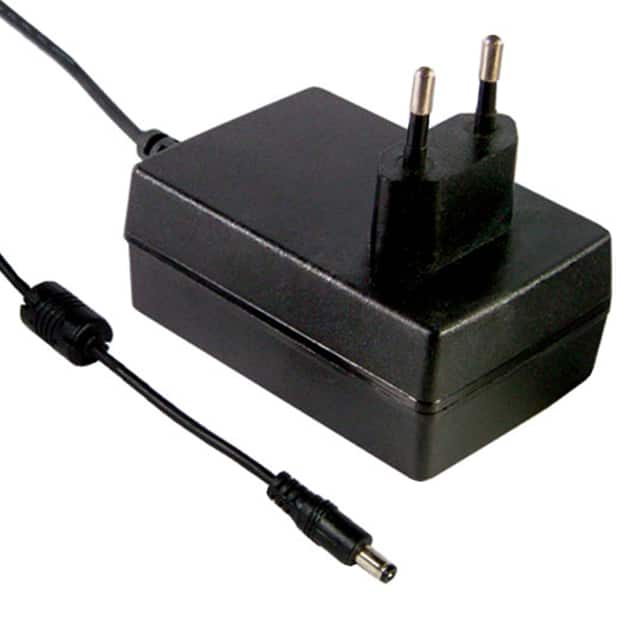

GSM36E05-P1J

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

GSM36E05-P1J

Manufacturer
MEAN WELL USA Inc.
Manufacturer Product Number
GSM36E05-P1J
Description
AC/DC WALL MOUNT ADAPTER 5V 23W
Product Status
Active
Detailed Description
5V 23 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Datasheet
GSM36E05-P1J Datasheet
EDA/CAD Models
GSM36E05-P1J Models

Product Attributes

Mfr MEAN WELL USA Inc.
Series GSM36E (36W)
Package Box
Product Status Active
Region Utilized Europe
Form Wall Mount (Class II)
Input Type Fixed Blade
Voltage - Input 80 ~ 264 VAC
Voltage - Output 5V
Current - Output (Max) 4.5A
Power (Watts) 23 W
No Load Power Consumption 100mW (Max)
Polarization Positive Center
Applications Medical
Efficiency Level V
Operating Temperature -25°C ~ 60°C
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Cord Length 47.2" (1.20m)
Input Connector CEE 7/16
Size / Dimension 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm)
Approval Agency CB, CE, TUV
Base Product Number GSM36E05
Description Shipping Reviews (2)

5V 23 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
