HLG-100H-20B

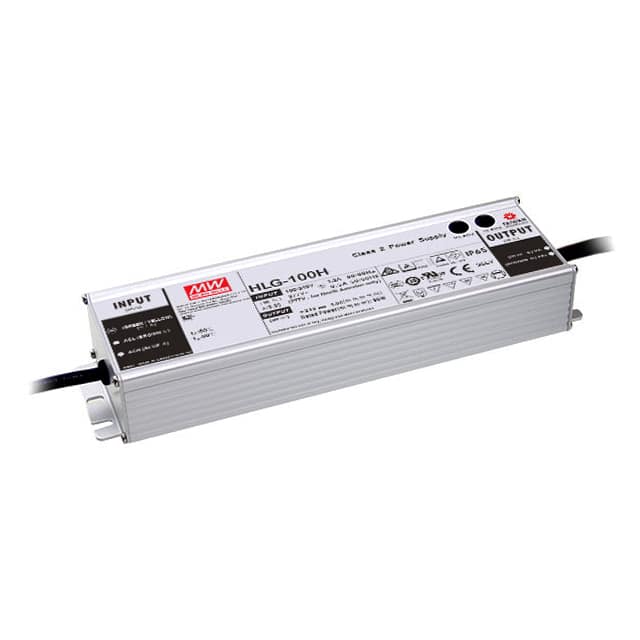

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

HLG-100H-20B

Manufacturer
MEAN WELL USA Inc.
Manufacturer Product Number
HLG-100H-20B
Description
LED DRVR CC/CV AC/DC 10-20V 4.8A
Product Status
Active
Detailed Description
4.8A 10 ~ 20V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
HLG-100H-20B Datasheet
EDA/CAD Models
HLG-100H-20B Models

Product Attributes

Approval Agency CB, CCC, CE, cURus, PSE, RCM, TUV
Base Product Number HLG-100H
Current - Output (Max) 4.8A
Dimming Analog, PWM
Efficiency 93%
Features OCP, OTP, OVP, SCP
Mfr MEAN WELL USA Inc.
Mounting Type Chassis Mount
Number of Outputs 1
Operating Temperature -40°C ~ 80°C
Package Box
Power (Watts) 96 W
Product Status Active
Ratings IP67
Series HLG-100H (100W)
Size / Dimension 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm)
Termination Style Wire Leads
Topology AC DC Converter
Type Constant Current, Voltage
Voltage - Input (Max) 305VAC
Voltage - Input (Min) 90VAC
Voltage - Isolation 3.75 kV
Voltage - Output 10 ~ 20V
Description Shipping Reviews (2)

4.8A 10 ~ 20V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
