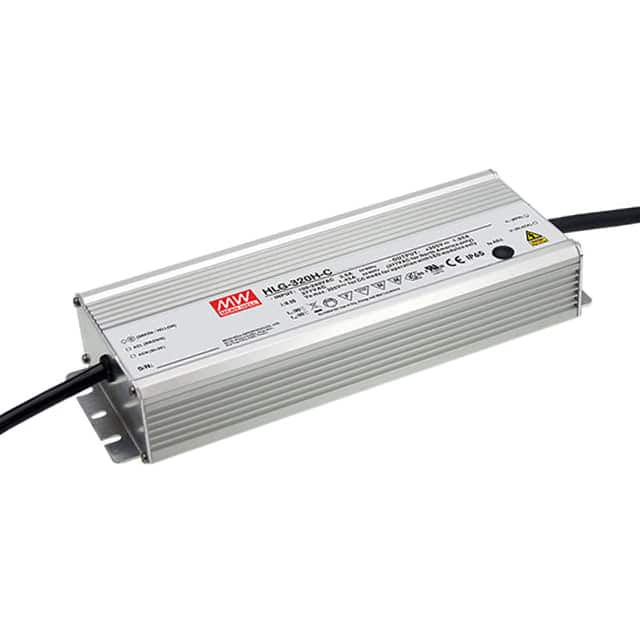

HLG-320H-20C

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

HLG-320H-20C

Manufacturer
MEAN WELL USA Inc.
Manufacturer Product Number
HLG-320H-20C
Description
LED DRVR CC/CV AC/DC 17-22V 15A
Product Status
Active
Detailed Description
15A 17 ~ 22V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
HLG-320H-20C Datasheet
EDA/CAD Models
HLG-320H-20C Models

Product Attributes

Approval Agency CB, CCC, CE, cURus, PSE, RCM, TUV
Base Product Number HLG-320H
Current - Output (Max) 15A
Dimming -
Efficiency 94%
Features OCP, OTP, OVP, SCP
Mfr MEAN WELL USA Inc.
Mounting Type Chassis Mount
Number of Outputs 1
Operating Temperature -40°C ~ 90°C
Package Box
Power (Watts) 300 W
Product Status Active
Ratings -
Series HLG-320H (320W)
Size / Dimension 8.87" L x 3.54" W x 1.72" H (225.2mm x 90.0mm x 43.8mm)
Termination Style Wire Leads
Topology AC DC Converter
Type Constant Current, Voltage
Voltage - Input (Max) 305VAC
Voltage - Input (Min) 90VAC
Voltage - Isolation 3.75 kV
Voltage - Output 17 ~ 22V
Description Shipping Reviews (2)

15A 17 ~ 22V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
