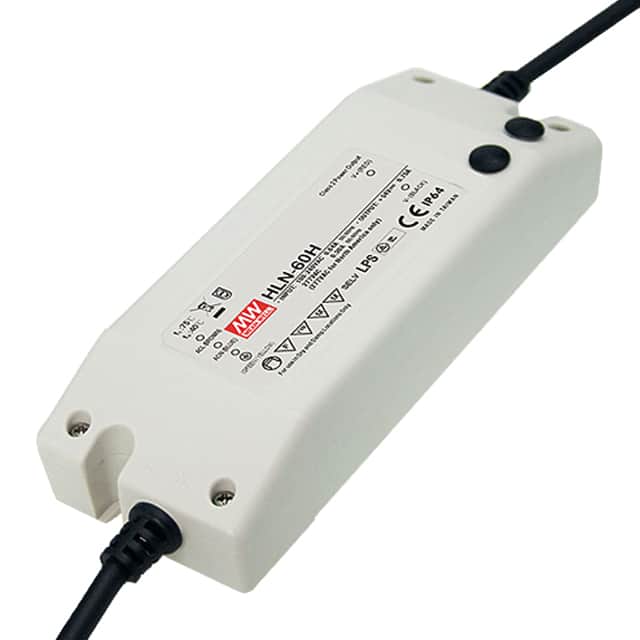

HLN-60H-48B

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

HLN-60H-48B

Manufacturer
MEAN WELL USA Inc.
Manufacturer Product Number
HLN-60H-48B
Description
LED DRVR CC/CV AC/DC 48V 1.3A
Product Status
Active
Detailed Description
1.3A 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
Datasheet
HLN-60H-48B Datasheet
EDA/CAD Models
HLN-60H-48B Models

Product Attributes

Approval Agency CB, CE, cURus, PSE, TUV, UR
Base Product Number HLN-60H
Current - Output (Max) 1.3A
Dimming Analog, PWM
Efficiency 90.5%
Features OCP, OTP, OVP, SCP
Mfr MEAN WELL USA Inc.
Mounting Type Chassis Mount
Number of Outputs 1
Operating Temperature -40°C ~ 50°C
Package Box
Power (Watts) 60 W
Product Status Active
Ratings IP64
Series HLN-60H (60W)
Size / Dimension 6.34" L x 2.42" W x 1.38" H (161.0mm x 61.5mm x 35.0mm)
Termination Style Wire Leads
Topology AC DC Converter
Type Constant Current, Voltage
Voltage - Input (Max) 305VAC
Voltage - Input (Min) 90VAC
Voltage - Isolation 3.75 kV
Voltage - Output 48V
Description Shipping Reviews (2)

1.3A 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
