ES2B-LTP

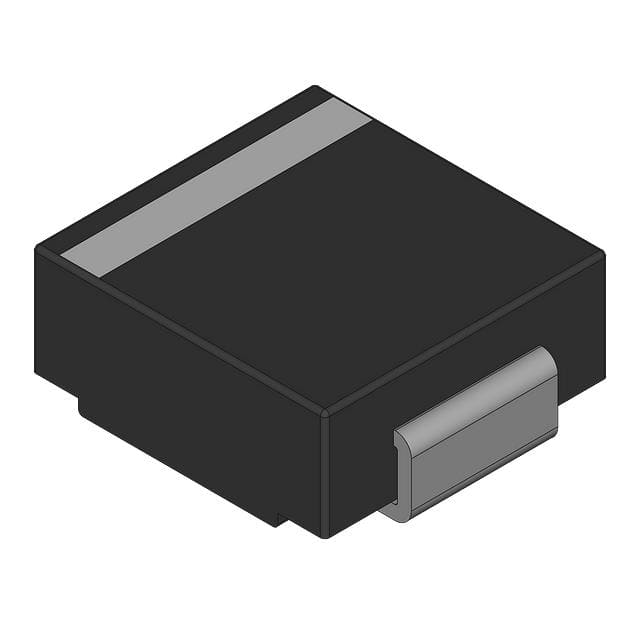

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

ES2B-LTP

Manufacturer
Micro Commercial Co
Manufacturer Product Number
ES2B-LTP
Description
DIODE GEN PURP 100V 2A DO214AC
Product Status
Active
Detailed Description
Diode Standard 100 V 2A Surface Mount DO-214AC (SMA)
Datasheet
ES2B-LTP Datasheet
EDA/CAD Models
ES2B-LTP Models

Product Attributes

Mfr Micro Commercial Co
Series -
Package Tape & Reel (TR), Cut Tape (CT)
Product Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 5 µA @ 100 V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number ES2B
Description Shipping Reviews (2)

Diode Standard 100 V 2A Surface Mount DO-214AC (SMA)
