Product Attributes

Mfr Mill-Max Manufacturing Corp.
Series 0936
Package Bulk
Product Status Active

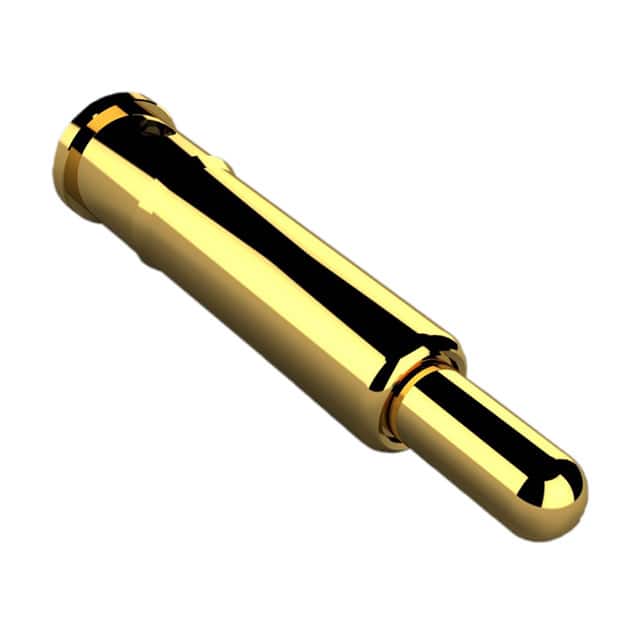

Contact Type Sleeve & Plunger (Pogo Pins)
Mounting Type Surface Mount
Maximum Working Height 0.217" (5.51mm)
Recommended Working Height 0.191" (4.86mm)
Minimum Working Height 0.167" (4.23mm)
Pad Layout Dimension Circular - 0.072" (1.83mm)
Operating Force - Initial 25gf
Operating Force - Mid Compression 60gf
Plunger Size 0.042" (1.07mm) Dia
Features -
Mating Cycles 1000000
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 20.0µin (0.51µm)
Current Rating (Amps) 2A
Material Flammability Rating -
Operating Temperature -55°C ~ 125°C
Base Product Number 0936-1
Description Shipping Reviews (2)

Contact Spring Surface Mount
