Upload a List
Integrated Circuit Key Solutions
110-43-432-41-105000

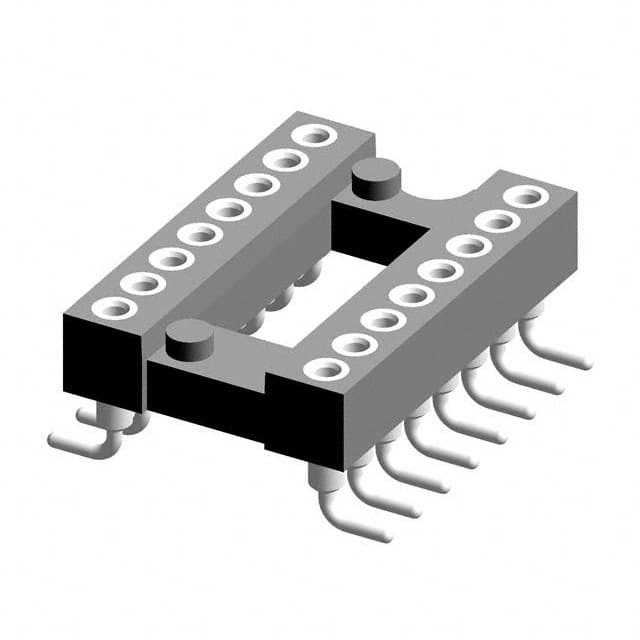

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

110-43-432-41-105000

Manufacturer
Mill-Max Manufacturing Corp.
Manufacturer Product Number
110-43-432-41-105000
Description
CONN IC SKT DBL
Product Status
Active
Detailed Description
32 (2 x 16) Pos DIP, 0.4" (10.16mm) Row Spacing Socket Gold Surface Mount
Datasheet
110-43-432-41-105000 Datasheet
EDA/CAD Models
110-43-432-41-105000 Models

Product Attributes

Mfr Mill-Max Manufacturing Corp.
Series 110
Package Tube
Product Status Active
Type DIP, 0.4" (10.16mm) Row Spacing
Number of Positions or Pins (Grid) 32 (2 x 16)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Material - Mating Beryllium Copper
Mounting Type Surface Mount
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 200.0µin (5.08µm)
Contact Material - Post Brass Alloy
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature -55°C ~ 125°C
Termination Post Length 0.125" (3.18mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3 A
Contact Resistance 10mOhm
Base Product Number 110-43
Description Shipping Reviews (2)

32 (2 x 16) Pos DIP, 0.4" (10.16mm) Row Spacing Socket Gold Surface Mount
