Integrated Circuit Key Solutions
0877590894

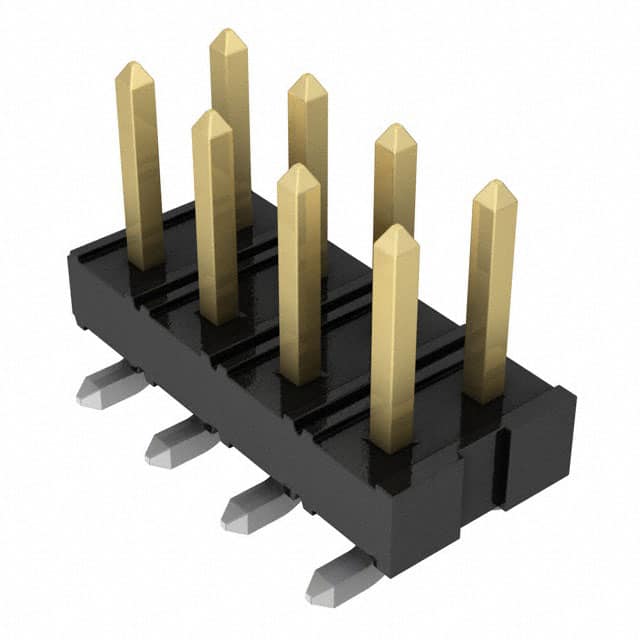

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

0877590894

Manufacturer
Molex
Manufacturer Product Number
0877590894
Description
CONN HEADER SMD 8POS 2MM
Product Status
Active
Detailed Description
Connector Header Surface Mount 8 position 0.079" (2.00mm)
Datasheet
0877590894 Datasheet
EDA/CAD Models
0877590894 Models

Product Attributes

Mfr Molex
Series Milli-Grid 87759
Package Bulk
Product Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.150" (3.81mm)
Contact Length - Post -
Overall Contact Length -
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Pick and Place
Operating Temperature -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive, General Purpose, Telecommunications
Base Product Number 087759
Description Shipping Reviews (2)

Connector Header Surface Mount 8 position 0.079" (2.00mm)
