HF500GP-30

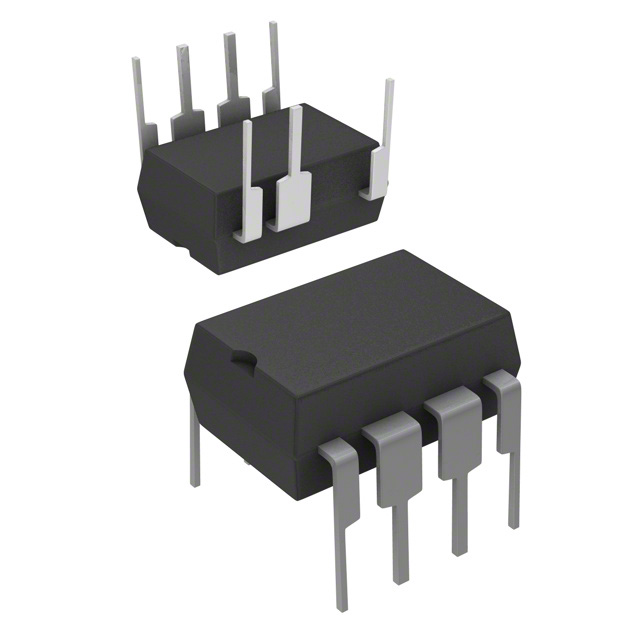

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

HF500GP-30

Manufacturer
Monolithic Power Systems Inc.
Manufacturer Product Number
HF500GP-30
Description
IC OFFLINE SWITCH FLYBACK 8DIP
Product Status
Active
Detailed Description
Converter Offline Flyback Topology 25kHz 8-PDIP-7B
Datasheet
HF500GP-30 Datasheet
EDA/CAD Models
HF500GP-30 Models

Product Attributes

Base Product Number HF500
Control Features Soft Start
Duty Cycle -
Fault Protection Over Load, Over Temperature, Over Voltage, Short Circuit
Frequency - Switching 25kHz
Internal Switch(s) No
Mfr Monolithic Power Systems Inc.
Mounting Type Through Hole
Operating Temperature -40°C ~ 125°C (TJ)
Output Isolation Isolated
Package Tube
Package / Case 8-DIP (0.300", 7.62mm), 7 Leads
Power (Watts) 1.5 W
Product Status Active
Series -
Supplier Device Package 8-PDIP-7B
Topology Flyback
Voltage - Breakdown 700V
Voltage - Supply (Vcc/Vdd) 12.5V ~ 24V
Description Shipping Reviews (2)

Converter Offline Flyback Topology 25kHz 8-PDIP-7B
