S912ZVC96F0CLF

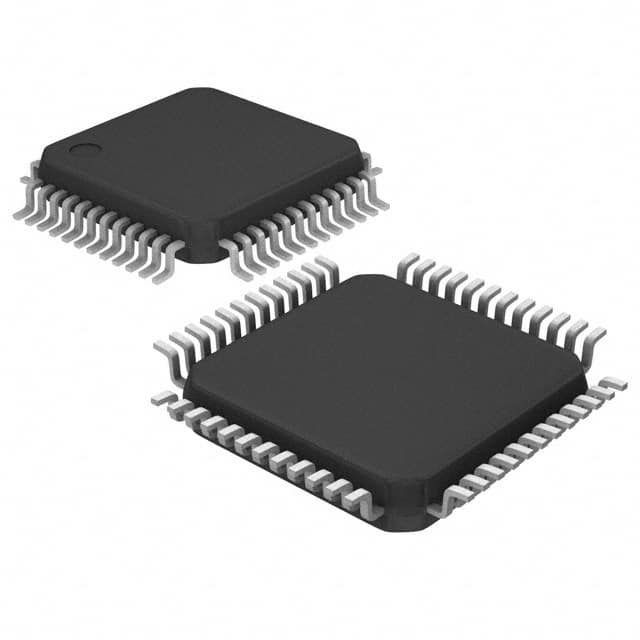

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

S912ZVC96F0CLF

Manufacturer
NXP USA Inc.
Manufacturer Product Number
S912ZVC96F0CLF
Description
IC MCU 16BIT 96KB FLASH 48LQFP
Product Status
Active
Detailed Description
S12Z S12 MagniV Microcontroller IC 16-Bit 32MHz 96KB (96K x 8) FLASH 48-LQFP (7x7)
Datasheet
S912ZVC96F0CLF Datasheet
EDA/CAD Models
S912ZVC96F0CLF Models

Product Attributes

Base Product Number S912
Connectivity CANbus, I²C, SCI, SPI
Core Processor S12Z
Core Size 16-Bit
Data Converters A/D 10x10b
EEPROM Size 2K x 8
Mfr NXP USA Inc.
Mounting Type Surface Mount
Number of I/O 28
Operating Temperature -40°C ~ 85°C (TA)
Oscillator Type Internal
Package Tray
Package / Case 48-LQFP
Peripherals DMA, POR, PWM, WDT
Product Status Active
Program Memory Size 96KB (96K x 8)
Program Memory Type FLASH
RAM Size 8K x 8
Series S12 MagniV
Speed 32MHz
Supplier Device Package 48-LQFP (7x7)
Voltage - Supply (Vcc/Vdd) 3.5V ~ 40V
Description Shipping Reviews (2)

S12Z S12 MagniV Microcontroller IC 16-Bit 32MHz 96KB (96K x 8) FLASH 48-LQFP (7x7)
