ADC12DL066CIVS/NOPB

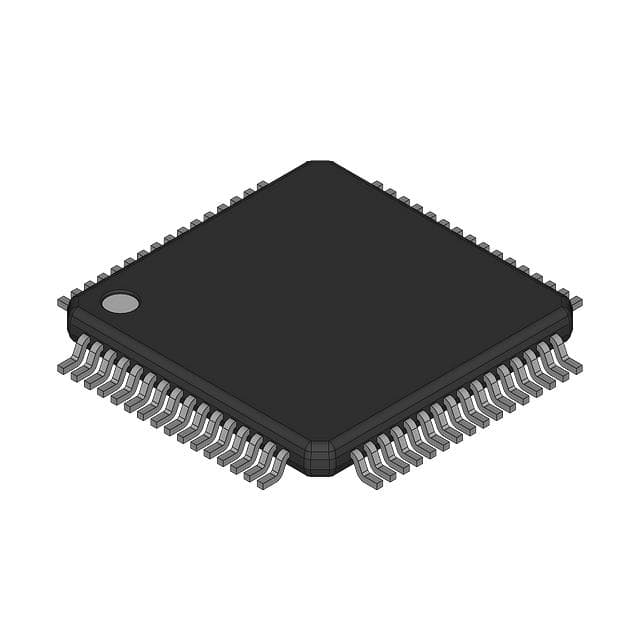

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

ADC12DL066CIVS/NOPB

Manufacturer
National Semiconductor
Manufacturer Product Number
ADC12DL066CIVS/NOPB
Description
IC ADC 12BIT PIPELINED 64TQFP
Product Status
Active
Detailed Description
12 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-TQFP (10x10)
Datasheet
ADC12DL066CIVS/NOPB Datasheet
EDA/CAD Models
ADC12DL066CIVS/NOPB Models

Product Attributes

Mfr National Semiconductor
Series -
Package Bulk
Product Status Active
Number of Bits 12
Sampling Rate (Per Second) 66M
Number of Inputs 2
Input Type Differential
Data Interface Parallel
Configuration S/H-ADC
Ratio - S/H:ADC 1:1
Number of A/D Converters 2
Architecture Pipelined
Reference Type External, Internal
Voltage - Supply, Analog 3V ~ 3.6V
Voltage - Supply, Digital 2.4V ~ 3.6V
Features Simultaneous Sampling
Operating Temperature -40°C ~ 85°C
Package / Case 64-TQFP
Supplier Device Package 64-TQFP (10x10)
Mounting Type Surface Mount
Description Shipping Reviews (2)

12 Bit Analog to Digital Converter 2 Input 2 Pipelined 64-TQFP (10x10)
