16SVPF270M

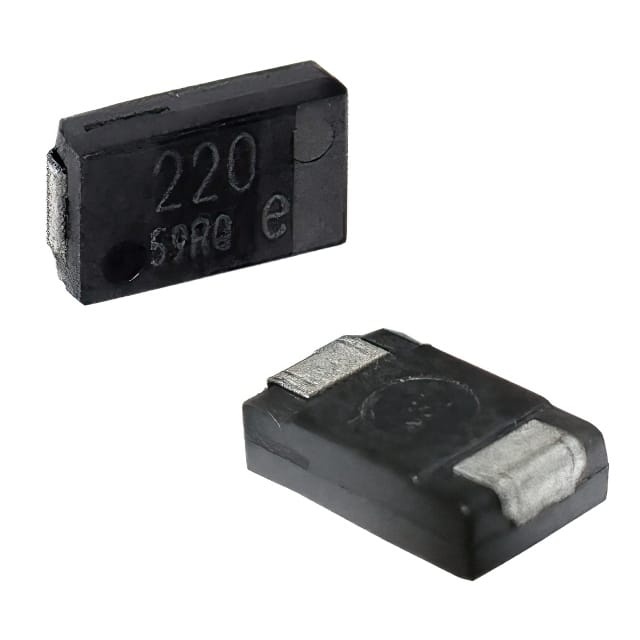

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

16SVPF270M

Manufacturer
Panasonic Electronic Components
Manufacturer Product Number
16SVPF270M
Description
CAP ALUM POLY 270UF 20% 16V SMD
Product Status
Active
Detailed Description
270 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 22mOhm 5000 Hrs @ 105°C
Datasheet
16SVPF270M Datasheet
EDA/CAD Models
16SVPF270M Models

Product Attributes

Base Product Number 16SVPF
Package / Case Radial, Can - SMD
Mounting Type Surface Mount
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Height - Seated (Max) 0.276" (7.00mm)
Size / Dimension 0.315" Dia (8.00mm)
Lead Spacing -
Ripple Current @ High Frequency 3.3 A @ 100 kHz
Ripple Current @ Low Frequency 165 mA @ 120 Hz
Applications General Purpose
Ratings -
Operating Temperature -55°C ~ 105°C
Lifetime @ Temp. 5000 Hrs @ 105°C
ESR (Equivalent Series Resistance) 22mOhm
Voltage - Rated 16 V
Tolerance ±20%
Capacitance 270 µF
Type Polymer
Product Status Active
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Series OS-CON™, SVPF
Mfr Panasonic Electronic Components
Description Shipping Reviews (2)

270 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 22mOhm 5000 Hrs @ 105°C
