RM138

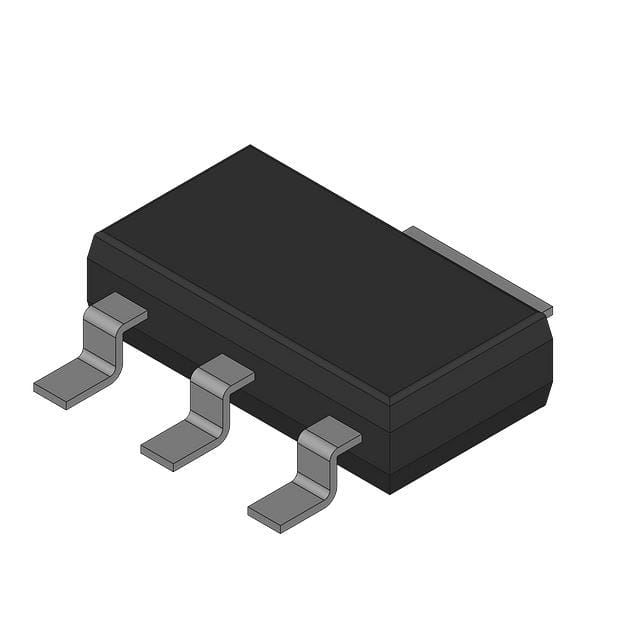

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

RM138

Manufacturer
Rectron USA
Manufacturer Product Number
RM138
Description
MOSFET N-CHANNEL 50V 220MA SOT23
Product Status
Active
Detailed Description
N-Channel 50 V 220mA (Ta) 350mW (Ta) Surface Mount SOT-23
Datasheet
RM138 Datasheet
EDA/CAD Models
RM138 Models

Product Attributes

Mfr Rectron USA
Series -
Package Tape & Reel (TR)
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 50 V
Current - Continuous Drain (Id) @ 25°C 220mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 3.5Ohm @ 220mA, 10V
Vgs(th) (Max) @ Id 1.4V @ 250µA
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 27 pF @ 25 V
FET Feature -
Power Dissipation (Max) 350mW (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-23
Package / Case TO-236-3, SC-59, SOT-23-3
Description Shipping Reviews (2)

N-Channel 50 V 220mA (Ta) 350mW (Ta) Surface Mount SOT-23
