8543BGILF

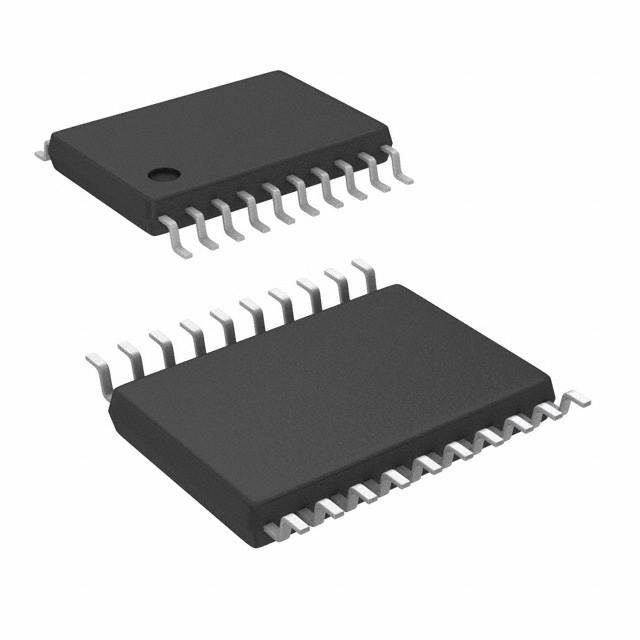

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

8543BGILF

Manufacturer
Renesas Electronics America Inc
Manufacturer Product Number
8543BGILF
Description
IC CLK BUFFER 2:4 650MHZ 20TSSOP
Product Status
Active
Detailed Description
Clock Fanout Buffer (Distribution), Multiplexer IC 2:4 650 MHz 20-TSSOP (0.173", 4.40mm Width)
Datasheet
8543BGILF Datasheet
EDA/CAD Models
8543BGILF Models

Product Attributes

Mfr Renesas Electronics America Inc
Series -
Package Tube
Product Status Obsolete
Type Fanout Buffer (Distribution), Multiplexer
Number of Circuits 1
Ratio - Input:Output 2:4
Differential - Input:Output Yes/Yes
Input CML, HCSL, LVDS, LVHSTL, LVPECL, SSTL
Output LVDS
Frequency - Max 650 MHz
Voltage - Supply 3.135V ~ 3.465V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 20-TSSOP
Base Product Number 8543B
Description Shipping Reviews (2)

Clock Fanout Buffer (Distribution), Multiplexer IC 2:4 650 MHz 20-TSSOP (0.173", 4.40mm Width)
