RS8564XQ

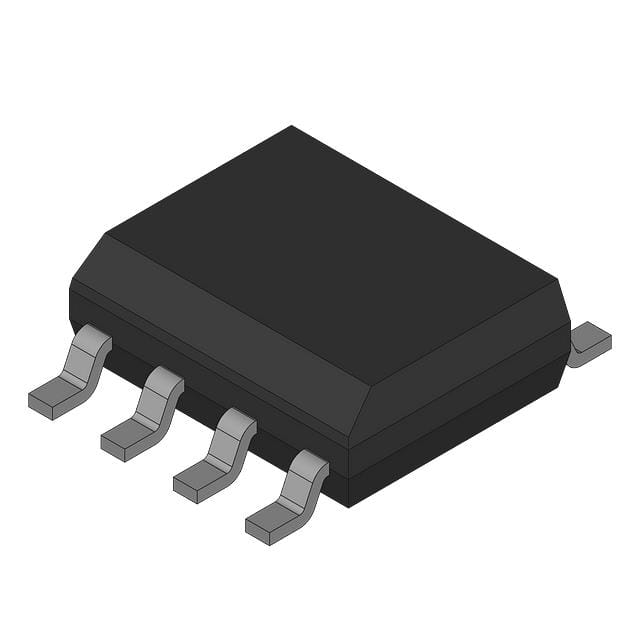

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

RS8564XQ

Manufacturer
Runic Technology
Manufacturer Product Number
RS8564XQ
Description
IC CMOS 4 CIRCUIT 14TSSOP
Product Status
Active
Detailed Description
CMOS Amplifier 4 Circuit Rail-to-Rail 14-TSSOP
Datasheet
RS8564XQ Datasheet
EDA/CAD Models
RS8564XQ Models

Product Attributes

Amplifier Type CMOS
Current - Input Bias 1 pA
Current - Output / Channel 65 mA
Current - Supply 1.3mA (x4 Channels)
Gain Bandwidth Product 11 MHz
Mfr Runic Technology
Mounting Type Surface Mount
Number of Circuits 4
Operating Temperature -40°C ~ 125°C
Output Type Rail-to-Rail
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Product Status Active
Series -
Slew Rate 8.5V/µs
Supplier Device Package 14-TSSOP
Voltage - Input Offset 1.5 µV
Voltage - Supply Span (Max) 5.5 V
Voltage - Supply Span (Min) 2.5 V
Description Shipping Reviews (2)

CMOS Amplifier 4 Circuit Rail-to-Rail 14-TSSOP
