SEAF-40-06.0-L-08-2-A-K-TR

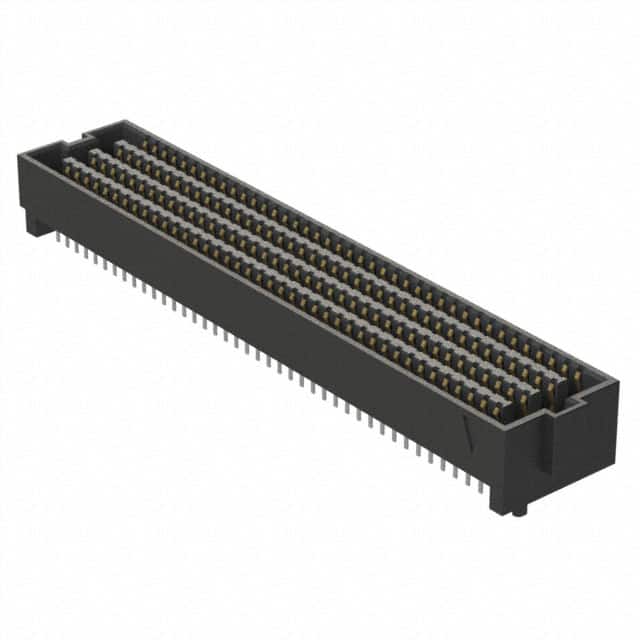

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

SEAF-40-06.0-L-08-2-A-K-TR

Manufacturer
Samtec Inc.
Manufacturer Product Number
SEAF-40-06.0-L-08-2-A-K-TR
Description
CONN HD ARRAY RCPT 320P SMD GOLD
Product Status
Active
Detailed Description
320 Position Connector High Density Array, Female Surface Mount Gold
Datasheet
SEAF-40-06.0-L-08-2-A-K-TR Datasheet
EDA/CAD Models
SEAF-40-06.0-L-08-2-A-K-TR Models

Product Attributes

Base Product Number SEAF-40
Connector Type High Density Array, Female
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Features Board Guide, Pick and Place
Height Above Board 0.238" (6.05mm)
Mated Stacking Heights 8mm, 9mm, 9.5mm, 12.5mm, 13mm, 15mm, 17mm, 19mm
Mfr Samtec Inc.
Mounting Type Surface Mount
Number of Positions 320
Number of Rows 8
Package Tape & Reel (TR), Cut Tape (CT)
Pitch 0.050" (1.27mm)
Product Status Active
Series SEARAY™ SEAF
Description Shipping Reviews (2)

320 Position Connector High Density Array, Female Surface Mount Gold
