STA335A

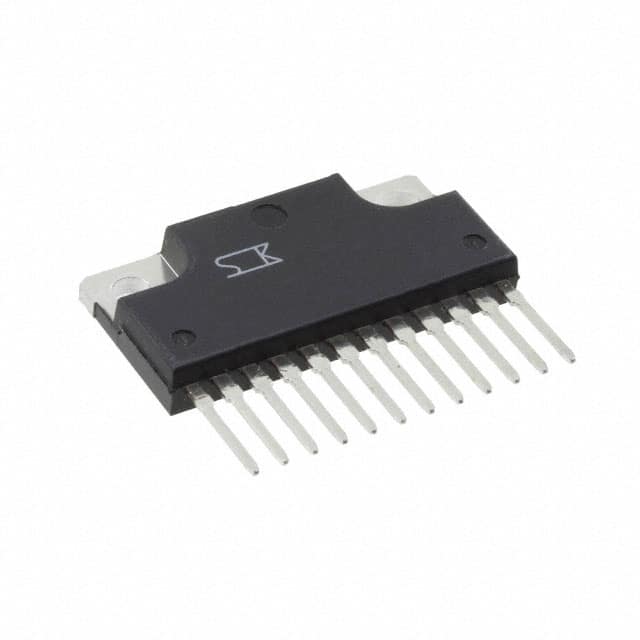

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

STA335A

Manufacturer
Sanken
Manufacturer Product Number
STA335A
Description
THYRISTOR ARRAY SIP
Product Status
Active
Detailed Description
Bipolar (BJT) Transistor Array 2 NPN (Dual) 36V 2A 2.5W Through Hole 8-SIP
Datasheet
STA335A Datasheet
EDA/CAD Models
STA335A Models

Product Attributes

Current - Collector (Ic) (Max) 2A
Current - Collector Cutoff (Max) 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 500 @ 500mA, 4V
Frequency - Transition -
Mfr Sanken
Mounting Type Through Hole
Operating Temperature 150°C (TJ)
Package Bulk
Package / Case 8-SIP
Power - Max 2.5W
Product Status Obsolete
Series -
Supplier Device Package 8-SIP
Transistor Type 2 NPN (Dual)
Vce Saturation (Max) @ Ib, Ic 500mV @ 5mA, 1A
Voltage - Collector Emitter Breakdown (Max) 36V
Description Shipping Reviews (2)

Bipolar (BJT) Transistor Array 2 NPN (Dual) 36V 2A 2.5W Through Hole 8-SIP
