CPH3209-TL-E

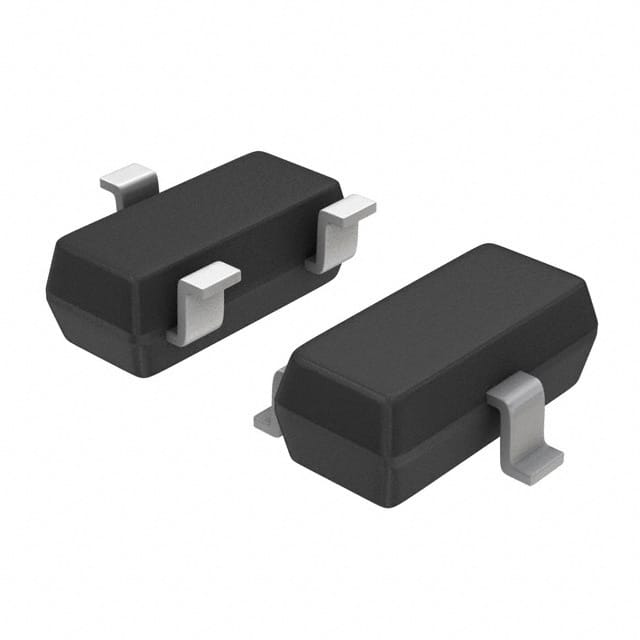

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

CPH3209-TL-E

Manufacturer
Sanyo
Manufacturer Product Number
CPH3209-TL-E
Description
TRANS NPN 30V 3A 3CPH
Product Status
Active
Detailed Description
Bipolar (BJT) Transistor NPN 30 V 3 A 450MHz 900 mW Surface Mount 3-CPH
Datasheet
CPH3209-TL-E Datasheet
EDA/CAD Models
CPH3209-TL-E Models

Product Attributes

Mfr Sanyo
Series -
Package Bulk
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 3 A
Voltage - Collector Emitter Breakdown (Max) 30 V
Vce Saturation (Max) @ Ib, Ic 155mV @ 75mA, 1.5A
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 500mA, 2V
Power - Max 900 mW
Frequency - Transition 450MHz
Operating Temperature 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package 3-CPH
Description Shipping Reviews (2)

Bipolar (BJT) Transistor NPN 30 V 3 A 450MHz 900 mW Surface Mount 3-CPH
