SAW9A32E-E2(H)(S)

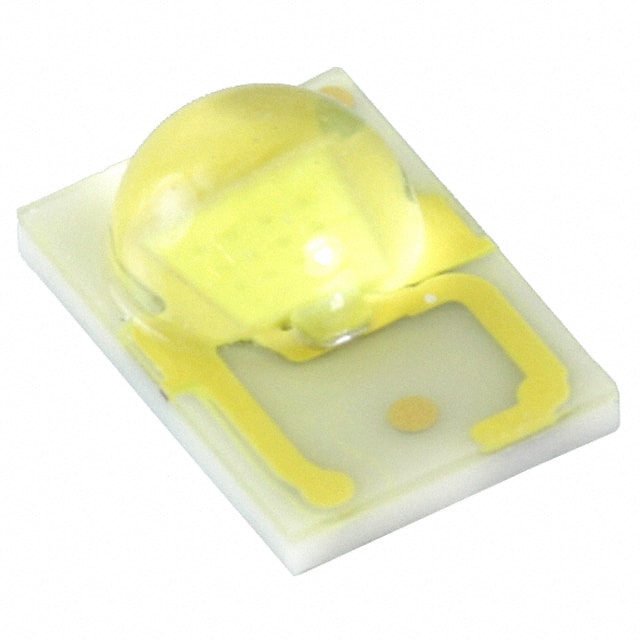

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

SAW9A32E-E2(H)(S)

Manufacturer
Seoul Semiconductor Inc.
Manufacturer Product Number
SAW9A32E-E2(H)(S)
Description
LED WHITE MID-POWER SMD
Product Status
Active
Detailed Description
LED Lighting 3528 White 9.1V 100mA 120° 1411 (3528 Metric)
Datasheet
SAW9A32E-E2(H)(S) Datasheet
EDA/CAD Models
SAW9A32E-E2(H)(S) Models

Product Attributes

Mfr Seoul Semiconductor Inc.
Series 3528
Package Tape & Reel (TR)
Product Status Active
Color White
CCT (K) -
Flux @ 85°C, Current - Test -
Flux @ 25°C, Current - Test -
Current - Test 100mA
Voltage - Forward (Vf) (Typ) 9.1V
Lumens/Watt @ Current - Test -
CRI (Color Rendering Index) 90
Current - Max 120mA
Viewing Angle 120°
Mounting Type Surface Mount
Package / Case 1411 (3528 Metric)
Supplier Device Package 1411 (3528)
Size / Dimension 0.130" L x 0.110" W (3.30mm x 2.80mm)
Height - Seated (Max) 0.035" (0.90mm)
Thermal Resistance of Package 17°C/W
Base Product Number SAW9A32
Description Shipping Reviews (2)

LED Lighting 3528 White 9.1V 100mA 120° 1411 (3528 Metric)
